203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector

203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector

    • 203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector
    • 203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector
    • 203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector
    • 203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector
  • 203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO
    Model Number: Insulation Fixing Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box.
    Delivery Time: 7 days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 6000000pcs per year
    Contact Now
    Detailed Product Description
    Plate Size: 40*40mm,50*50mm Or As Request Spindle Diameter: 2mm-3mm
    Spindle Length: 15mm-180mm Type: Self Adhesive
    Material: Stainless Steel, Mild Steel, Aluminum Base Thickness: 0.4mm
    High Light:

    insulation pins and washers

    ,

    insulation wall plugs



    Aluminum Self Adhesive Insulation Fixing Pins For Duct Connector



    Self Adhesive Insulation Fixing Pins Materials:Low Carbon Steel - PIN / Plate
    Mechanical Properties:Low Carbon Steel - Plate,Also available by special order in all Stainless Steel or all Aluminum.


    Self Adhesive Insulation Fixing Pins Plating:Galvanized coating is standard. - PIN / Plate
    Washers:Self-locking washers are available in a variety of sizes, shapes, and materials.
    Size - D:12 GA (0.105") is standard.Other sizes available by special order only.
    Length - L:1", 1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2". 6-1/2", 8" and 9" are standard.Other lengths available by special order.



    Material:Galvanized Steel (Standard),Available in Stainless Steel & Alum as special order



                                                                                                                 Self Adhesive Insulation Fixing Pins specification



    pin diameter base plate size insulatiion pin length
    12ga ( 0.106 " ) 2 " square w / tape 1 "
    12ga ( 0.106 " ) 2 " square w / tape 1 - 5 / 8 "
    12ga ( 0.106 " ) 2 " square w / tape 2 "
    12ga ( 0.106 " ) 2 " square w / tape 2 - 1 / 2"
    12ga ( 0.106 " ) 2 " square w / tape 3 - 1 / 2"
    12ga ( 0.106 " ) 2 " square w / tape 4 - 1 / 2"
    12ga ( 0.106 " ) 2 " square w / tape 5 - 1 / 2"
    12ga ( 0.106 " ) 2 " square w / tape 6 - 1 / 2"
    12ga ( 0.106 " ) 2 " square w / tape 8 "

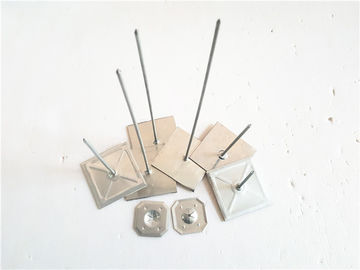

    203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector 0


    Self Adhesive Insulation Fixing Pins



    1.have 12ga. (.106″/2.7mm) diameter mild steel spindles with a corrosion resistant coating.

    2.The base plate is 2″ (51mm) square and is made of galvanized steel with a pre-applied, pressure-sensitive

       adhesive protected by a release paper.

    3.Standard lengths range from 1″ (25mm) through 8″ (203mm) and are packed 1,000 pieces per carton up to

       2 1/2″ (64mm); 500 pieces per carton for longer sizes.

    4.Other materials (Stainless Steel, Aluminum), packaging (100 packs) and configurations (nibbed) are available

       on special order.



    Self Adhesive Insulation Fixing Pins images

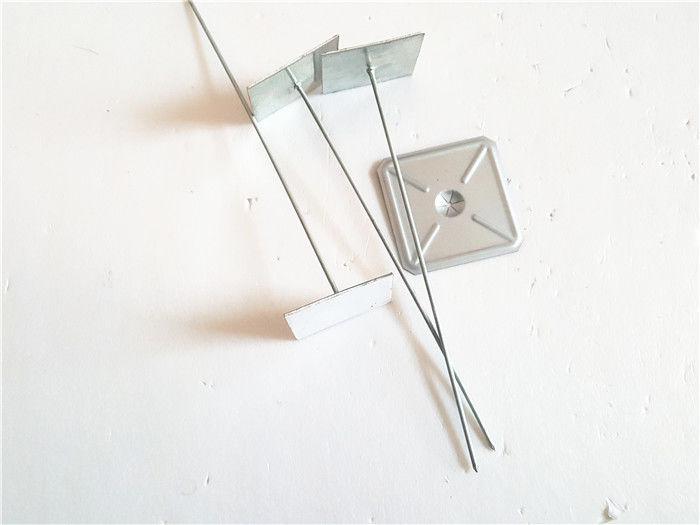

    203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector 1

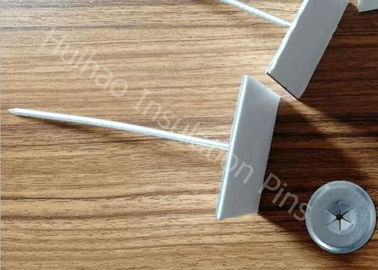

    203mm Length Aluminum Self Adhesive Insulation Pins Used For Duct Connector 2
