Place of Origin: | China |
Brand Name: | huihao |
Certification: | ISO |
Model Number: | Insulation Fixing Pins |
Minimum Order Quantity: | Negotiable |
---|---|
Packaging Details: | 500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box. |
Delivery Time: | 7 days |
Payment Terms: | L/C, T/T, Western Union,paypal |
Supply Ability: | 6000000pcs per year |
Plate Size: | 40*40mm,50*50mm Or As Request | Spindle Diameter: | 2mm-3mm |
---|---|---|---|
Spindle Length: | 15mm-180mm | Type: | Self Adhesive |
Material: | Stainless Steel, Mild Steel, Aluminum | Base Thickness: | 0.4mm |
High Light: | insulation hangers,insulation pins and washers |
Self Adhesive Insulation Fixing Pins Materials:Low Carbon Steel - PIN / Plate
Mechanical Properties:Low Carbon Steel - Plate,Also available by special order in all Stainless Steel or all Aluminum.
Self Adhesive Insulation Fixing Pins Plating:Galvanized coating is standard. - PIN / Plate
Washers:Self-locking washers are available in a variety of sizes, shapes, and materials.
Size - D:12 GA (0.105") is standard.Other sizes available by special order only.
Length - L:1", 1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2". 6-1/2", 8" and 9" are standard.Other lengths available by special order.
Material:Galvanized Steel (Standard),Available in Stainless Steel & Alum as special order
Self Adhesive Insulation Fixing Pins specification
pin diameter | base plate size | insulatiion pin length |
12ga ( 0.106 " ) | 2 " square w / tape | 1 " |
12ga ( 0.106 " ) | 2 " square w / tape | 1 - 5 / 8 " |
12ga ( 0.106 " ) | 2 " square w / tape | 2 " |
12ga ( 0.106 " ) | 2 " square w / tape | 2 - 1 / 2" |
12ga ( 0.106 " ) | 2 " square w / tape | 3 - 1 / 2" |
12ga ( 0.106 " ) | 2 " square w / tape | 4 - 1 / 2" |
12ga ( 0.106 " ) | 2 " square w / tape | 5 - 1 / 2" |
12ga ( 0.106 " ) | 2 " square w / tape | 6 - 1 / 2" |
12ga ( 0.106 " ) | 2 " square w / tape | 8 " |
Self Adhesive Insulation Fixing Pins For Flexible Duct Connector

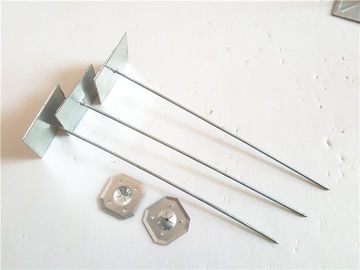

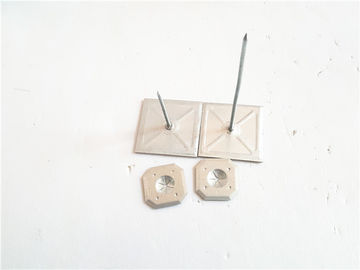

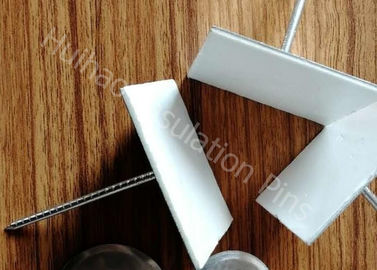

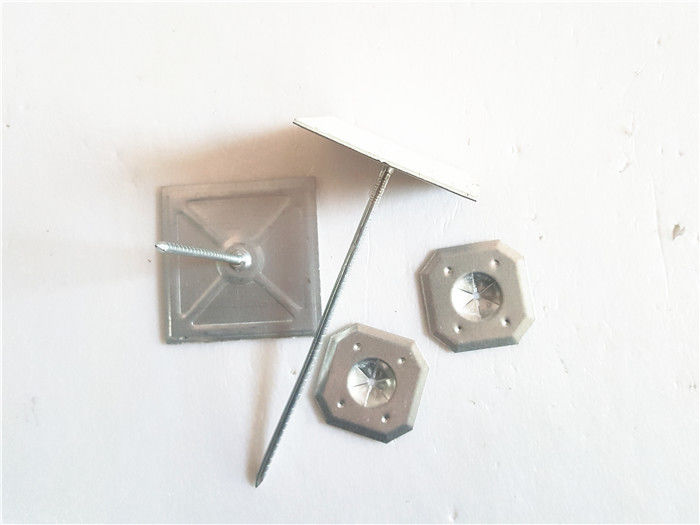

Self Adhesive Insulation Fixing Pins images
