4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board

4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board

    • 4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board
    • 4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board
    • 4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board
    • 4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board
  • 4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001-2008
    Model Number: self stick pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box.
    Delivery Time: 7 days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 6000000pcs per year
    Contact Now
    Detailed Product Description
    Plate Size: 40*40mm,50*50mm Or As Request Spindle Diameter: 2mm-3mm
    Spindle Length: 15mm-180mm Type: Self Adhesive
    Material: Stainless Steel, Mild Steel, Aluminum Part: Self Locking Washer Or Dome Caps
    Adhesive Thickness: 1mm Application: Wall Insulation Material
    Square Base Washer: 0.4-0.7mm Service Temperature: -40 Deg C To +70 Deg C



    4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board



    Self Adhesive stick pins Description

    _________________________________________________________________________________



    self adhesive stick Pins also named Peel and Press Insulation Hanger, it is made of mild steel nail or aluminum nails with

    galvanized steel square washer base.



    If the nail is made of steel wire, it must be annealed, then mechanically galvanized, one is convenient for customers, and the

    other is to increase or decrease product life, waterproof and rustproof.



    if the nail made of aluminum material, the grade must be 1100, On the one hand, it is easy to bend and each segment, and

    second, it has sufficient hardness to withstand the weight of the insulation material.



    if specifical application, can choose stainless steel 304/316 material.



    Specification of self adhesive stick pins

    ___________________________________________________________________________________________



    self adhesive stick pins base plate size is 30mm, 40mm, 50mm or to be customer's requirements.



    for the pin diameter is 2mm, 2.2mm, 2.7mm and 3mm. of couse, we can be your request to adjust the pin diameters.



    for the stick pin length: from 15mm to 318mm.



    we offer part specification as follows, as reference:



    pin diameter base plate size  self stick pin length
    12ga ( 2.7mm ) 50mm square w / tape 1 "
    12ga ( 2.7mm ) 50mm square w / tape 1 - 5 / 8 "
    12ga ( 2.7mm ) 50mm square w / tape 2 "
    12ga ( 2.7mm ) 50mm square w / tape 2 - 1 / 2"
    12ga ( 2.7mm ) 50mm square w / tape 3 - 1 / 2"
    12ga ( 2.7mm ) 50mm square w / tape 4 - 1 / 2"
    12ga ( 2.7mm ) 50mm square w / tape 5 - 1 / 2"
    12ga ( 2.7mm ) 50mm square w / tape 6 - 1 / 2"
    12ga ( 2.7mm ) 50mm square w / tape 8 "



    4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board



    Application of Self Adhesive stick Pins

    ___________________________________________________________________________________________



    Self adhesive stick pins is used for fixing wall insulation layers, becase of spindles with a corrosion resistant coating and it

     is made of galvanized steel with a pre-applied, pressure-sensitive adhesive protected by a release paper. Stick directly  to

    the wall, then Pins into the insulation layer , self locking washer fixing the insulation layer, then bend the pins. i square meters

    need 25 pieces self stick pins.

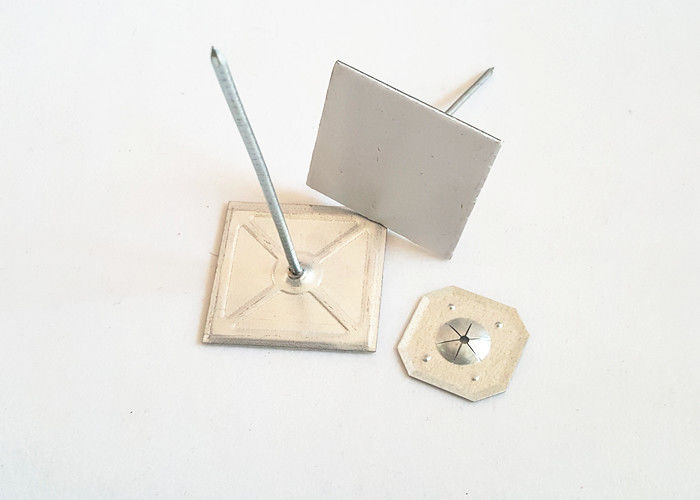

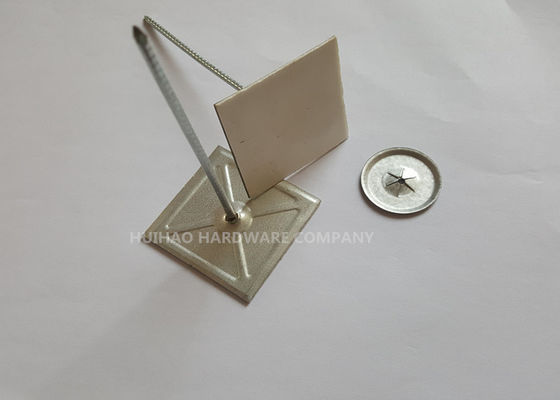

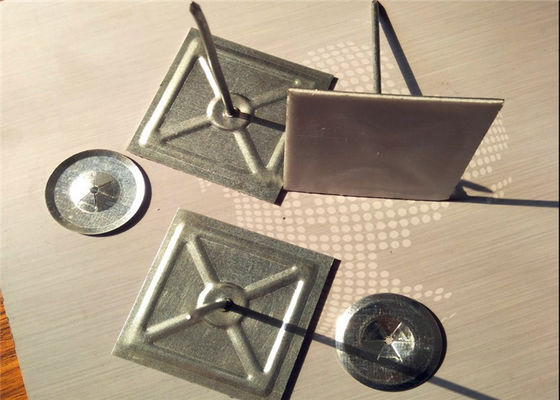

    images of self adhesive stick pins

    _____________________________________________________________________________







    4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board



    4-1/2" L Positive Adhesion Self Adhesive stick Pins For Wall Insulation Board



    huihao company advantages

    _________________________________________________________________________________



    1. huihao company is belong ISO9001-2008 system, and we will supply official material certification, factory test report  and accept

    SGS,BV, CE third party test.



    2.We produce different standards of self-adhesive insulation nails according to different markets. For example, countries with tropical

    climates use insulation nails that are different from countries with cold climates.First of all, the year of glue is different and the

    temperature is different.



    3. For raw materials, we have American, Japanese, German and European standards.Solved the problem that customers need product

    market differentiation.



    4.We have a stable sales team that solves the problem of language barriers and order management.



    5. 24hour hotline, contact with me by mobile/ whats app 0086-13363891298 or by email admin@huihaomesh.com
