Duct Liner SSP Gold Seal Pins Weld Rib Pins For Faster Post - Weld Cooling

Duct Liner SSP Gold Seal Pins Weld Rib Pins For Faster Post - Weld Cooling

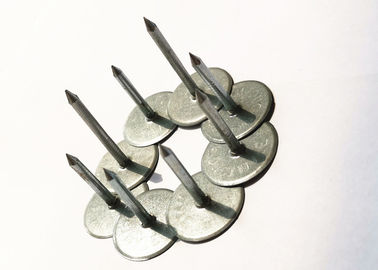

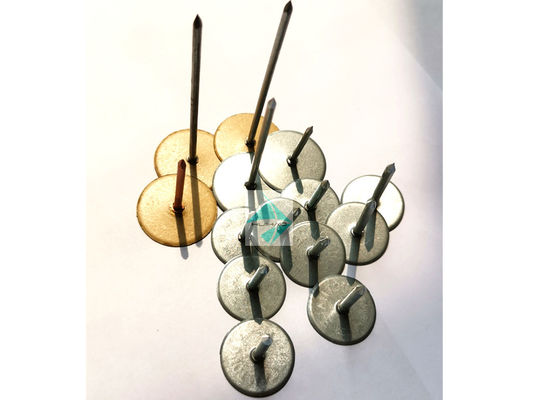

    • Duct Liner SSP Gold Seal Pins Weld Rib Pins For  Faster Post - Weld Cooling
    • Duct Liner SSP Gold Seal Pins Weld Rib Pins For  Faster Post - Weld Cooling
    • Duct Liner SSP Gold Seal Pins Weld Rib Pins For  Faster Post - Weld Cooling
    • Duct Liner SSP Gold Seal Pins Weld Rib Pins For  Faster Post - Weld Cooling
  • Duct Liner SSP Gold Seal Pins Weld Rib Pins For  Faster Post - Weld Cooling

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Weld Rib Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 1)20-25kgs/CTN, 2)50lb/CTN, 3)30lb/Bucket, 4)5kgs/Box, 4)1kg/Bag etc.
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 3000000 pcs per month
    Contact Now
    Detailed Product Description
    Thickness: .015" - .017" Length: 1/2", 1/2", 1", 1-1/8", 1-1/2",2", & 2-1/8"
    Usage: For Use With The MF, PBF, FG, RH And FGMH Pinspotters From Duro Dyne Pins Thickness: BWG8-12



    Duct Liner SSP Gold Seal Pins, Weld Rib Pins for Faster Post-Weld Cooling​



    SSP Gold Seal Pins, Weld Rib Pins Thickness: .015" - .017"

    • Specially pointed nail to assure uniform welding
    • For use with the MF, PBF, FG, RH and FGMH pinspotters from Duro Dyne
    • Available in 1/2", 1/2", 1", 1-1/8", 1-1/2",2", & 2-1/8"

    SSP Gold Seal Pins, Weld Rib Pins Advantages: Real big factory, high quality, fast delivery time and satisfied service



    Huihao SSP Gold Seal Pins, Weld Rib Pins



    length gauge head diamond nos per lb
    3/4" 12 15/16" 90
    1" 12 15/16" 85
    1-1/4" 12 15/16” 81
    1-1/2" 12 15/16” 77
    1-3/4" 12 15/16” 67
    2" 12 15/16” 63
    2-1/2" 11 15/16” 57
    3" 11 15/16” 53
    4" 10 15/16 44



    BDEP Target Pins



    Target Pins are a patented insulation fastener with an aerodynamic, embossed washer and a recessed nail head, to improve the quilting contour of the secured duct. Available in 1/2", 3/4", 1", 1-1/8", 1-1/2", 2" and 2-1/8" lengths.



    Image 2

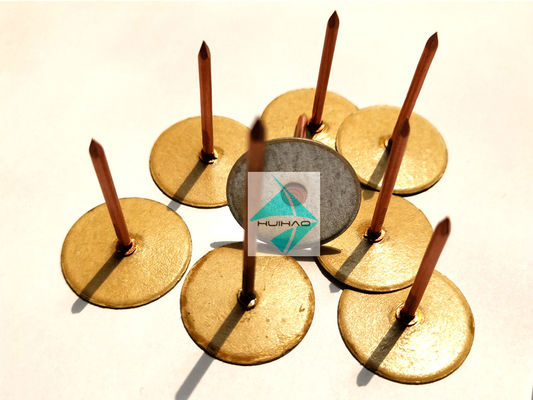

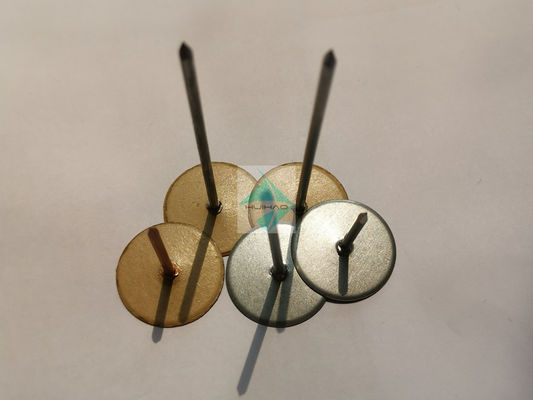

    SSP Gold Seal Pins



    Gold Seal Pins hold the duct liner in place and seal the hole created during insertion. Heat activated gold adhesive on the underside of the washer secures the pin to the liner facing during the welding process.



    • Adhesive coating insulates the underside of the washer to allow welding on foil faced insulation.
    • Do not store at or above 110F or pins may stick together.
    • Gold Seal Pins also feature “dished washers” and precision formed
    points to insure consistent penetration of duct liner.
    • Gold Seal Pins are designed for use with all FG, RH, PBF, MF, CDMF Pinspotters.
    • Gold Seal Pins available in 1/2”, 3/4”, 1”, 1-1/8", 1-1/2", 2”, 2-1/8", 2-1/2", 3" and 4" lengths.



    Image 2



    CP Rib Pins



    Duro Dyne Rib Pins (CP) have dished washers, ribbed nails for faster post-weld cooling and precision points to assure uniform quality. Available in 1/2", 3/4", 1", 1-1/8", 1-1/2" and 2" lengths.



    Image 2



    CTC Slope Pins



    CTC Sloped Washer pins are a low cost insulation fastener, designed to provide a strong mechanical anchor point for duct liner, and a smooth transition from the insulation surface to the quilting depression. Available in 1/2", 3/4", 1", 1-1/8", 1-1/2" and 2" lengths.



    Image 2



    FTC Econo Point Pins



    Econo Point FTC weld pins utilize a specially pointed nail to assure uniform welding. Available in 1/2", 3/4", 1", 1-1/8", 1-1/2" and 2" lengths.



    Image 2



    All of the above weld pin styles are used with FG, RH, PBF, MF, CDMF Pinspotters.
