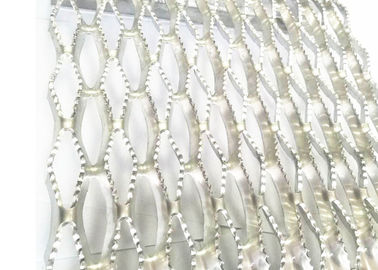

Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate

Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate

    • Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
    • Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
    • Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
    • Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
  • Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO
    Model Number: Anti Slip Metal Plates

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Pallets or wooden cases
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T, Western Union,PAYPAL
    Supply Ability: 200000PCS per month
    Contact Now
    Detailed Product Description
    Name: Anti Slip Metal Plates Material: Aluminum, Galvanized Steel, Stainless Steel
    Maximum Lengths: 6000mm Standard Widths: 120 Mm / 180 Mm / 240 Mm / 300 Mm / 360 Mm / 420 Mm / 480 Mm
    Plate Thickness: 12 Gauge Or 14 Gauge. Application: As Walkways Or Stair Steps For Antiskid



    Aluminum Safety Grating Walkways , Crocodile Mouth Anti Slip Metal Plate



    1.Hole size: Many different opening types to suit all applications including solid flooring with Raised Surface – please refer

                    to catalogues.

    2.Thickness: 2mm to 3.5mm

    3.Panel Widths: From the narrowest of panels up to 1000mm wide in some of the more specialist industrial type gratings –

                                  please refer to catalogues.

    4.Percentage open area: 0%(solid flooring) to 80% open area approximately – please refer to Downloads here for the full

                                                  range of percentage open area.

    5.Application:works great as the safety grating of sewage treatment plant,power plant,and work plant,etc,as well as the platform

                             scaffoldings and stair treads for snowy places.



    Material hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc.
    Hole patterns crocodile mouth, round raised hole, tears shape etc.
    Thickness generally 2mm, 2.5mm, 3.0mm
    Height 20mm, 40mm, 45mm, 50mm, customized
    Length 1m, 2m, 2.5m, 3.0m, 3.66m
    Production technique punching, cutting, bending, welding



    >>>Huihao-Crocodile mouth Anti-skid Perforated Metal Plates

    2 Diamond / 4-3/4" Width

    Diamond Pattern

    Width

    Channel Depth

    Pre-galvanized

    Aluminum

    Stainless

    2 Diamonds

    4-3/4"

    1-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    4-3/4"

    2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    16 Ga. (.062")

    4-3/4"

    2-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    3 Diamond / 7" Width

    Diamond Pattern

    Width

    Channel Depth

    Pre-galvanized

    Aluminum

    Stainless

    3 Diamonds

    7"

    1-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    7"

    2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    16 Ga. (.062")

    7"

    2-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    7"

    3"

    12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    4 Diamond / 9-1/2" Width

    Diamond Pattern

    Width

    Channel Depth

    Pre-galvanized

    Aluminum

    Stainless

    4 Diamonds

    9-1/2"

    1-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    9-1/2"

    2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    16 Ga. 304 & 316L

    9-1/2"

    2-1/2"

    N/A

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    9-1/2"

    3"

    12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    5 Diamond / 11-3/4" Width

    Diamond Pattern

    Width

    Channel Depth

    Pre-galvanized

    Aluminum

    Stainless

    5 Diamonds

    11-3/4"

    1-1/2"

    14 Ga, 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    11-3/4"

    2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    16 Ga. 304 & 316L

    11-3/4"

    2-1/2"

    14 Ga., 12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    11-3/4"

    3"

    12 Ga.

    12 Ga. (.080"), 10 Ga.(.100")

    N/A

    8 Diamond / 18-3/4" Width

    Diamond Pattern

    Width

    Channel Depth

    Pre-galvanized

    Aluminum

    Stainless

    8 Diamonds

    18-3/4"

    1-1/2"

    14 Ga., 12 Ga.

    10 Ga. (.100")

    N/A

    18-3/4"

    2"

    14 Ga., 12 Ga.

    10 Ga. (.100")

    N/A

    18-3/4" 2-1/2" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
    18-3/4" 3" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
    10 Diamond / 24" Width
    Diamond Pattern Width Channel Depth Pre-galvanized Aluminum Stainless
    10 Diamonds 24" 2" 14 Ga., 12 Ga. N/A N/A
    24" 3" 14 Ga., 12 Ga. N/A N/A


    How to install the Anti Slip Metal Plates

    Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate



    Bolt Seats securely anchor the grating to structural supports. The standard bolt seat features oblong holes specifically

    designed to ensure a vertical anchor (with a 3/8" bolt) even if the hole is off concentrically by as much as 1/4". Available

    in mill-galvanized steel, aluminum and stainless steel.

    J-Clips fasten the grating securely to the supporting steel without drilling holes. Standard finish is galvanized.



    Mid support clips can be used at midspan to increase load carrying capacities of individual channels by fastening several

    planks together to form an integral section. The Midsupport Clip is manufactured from galvanized steel and includes two bolts.



    Feature and advantages of the Anti Slip Metal Plate

    • Slip resistance. Serrated edges around diamond shaped openings provide slip resistance under slippery conditions
    • Stress crack resistance. Radiused corners reduce the possibility of stress cracks across saddles
    • or at the side channels under various loading conditions.
    • Self-cleaning. Due to the hole on the surface can filter the extra things.
    • Lightweight. Lightweight design provides high strength to weight ratio.
    • Long life. Long life and requiring little maintenance.

    Packaging of the Anti-skid Perforated Metal Plates



    In High quality steel pallet with strong steel belt ,wooden pallet. and also could be packed as request .
