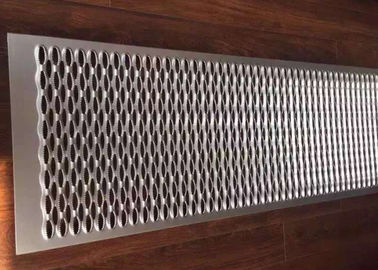

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs
180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs

Large Image :  180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Metal Grip Strut Grating
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Pallets or wooden cases
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 200000PCS per month
Contact Now

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs

Description
Name: Metal Grip Strut Grating Material: Aluminum, Galvanized Steel, Stainless Steel
Maximum Lengths: 6000mm Standard Widths: 120 Mm / 180 Mm / 240 Mm / 300 Mm / 360 Mm / 420 Mm / 480 Mm
Standard Height: 30 Mm / 40 Mm / 50 Mm / 75 Mm. Application: As Walkways Or Stair Steps For Antiskid
Highlight:

aluminum safety grating

,

aluminum plank grating



180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs



Perforated Metal Grip Strut Grating are manufactured with welded end carrier plates, pre-punched with holes, which

allow the treads to be bolted to the stair stringers.



Perforated Metal Grip Strut Grating provides a defined visible nosing. Where increase visibility and safety are required,

specify products with supplementary cast abrasive nosings.



Material

hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc.

Hole patterns

crocodile mouth, round raised hole, tears shape etc.

Thickness

generally 2mm, 2.5mm, 3.0mm

Height

20mm, 40mm, 45mm, 50mm, customized

Length

1m, 2m, 2.5m, 3.0m, 3.66m

Production technique

punching, cutting, bending, welding



>>>Crocodile mouth Perforated Metal Grip Strut Grating

2 Diamond / 4-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

2 Diamonds

4-3/4"

1-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

4-3/4"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. (.062")

4-3/4"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

3 Diamond / 7" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

3 Diamonds

7"

1-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

7"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. (.062")

7"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

7"

3"

12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

4　Diamond　/　9-1/2"　Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

4　Diamonds

9-1/2"

1-1/2"

14　Ga.,　12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

N/A

9-1/2"

2"

14　Ga.,　12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

16　Ga.　304　&　316L

9-1/2"

2-1/2"

N/A

12　Ga.　(.080"),　10　Ga.(.100")

N/A

9-1/2"

3"

12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

N/A

5 Diamond / 11-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

5 Diamonds

11-3/4"

1-1/2"

14 Ga, 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

11-3/4"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. 304 & 316L

11-3/4"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

11-3/4"

3"

12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

8 Diamond / 18-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

8 Diamonds

18-3/4"

1-1/2"

14 Ga., 12 Ga.

10 Ga. (.100")

N/A

18-3/4"

2"

14 Ga., 12 Ga.

10 Ga. (.100")

N/A
18-3/4" 2-1/2" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
18-3/4" 3" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
10 Diamond / 24" Width
Diamond Pattern Width Channel Depth Pre-galvanized Aluminum Stainless
10 Diamonds 24" 2" 14 Ga., 12 Ga. N/A N/A
24" 3" 14 Ga., 12 Ga. N/A N/A

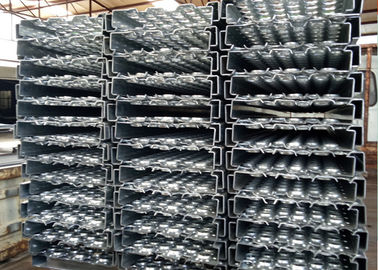

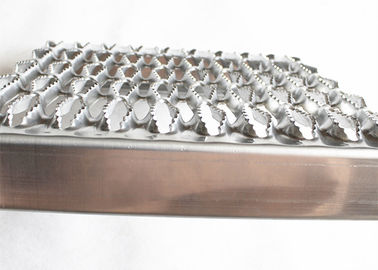

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 0



>>>Huihao-Round hole Perforated Metal Grip Strut Grating



3 Holes 7" Width, 5 Holes 10" Width, 6 Holes 12" Width, 10 Holes, 18" Width
Material galvanized steel Aluminum Stainless
Gauge 13Ga, 11Ga 0.125” 16Ga, 14Ga
Channel Depth 1-1/2", 2" 1-1/2", 2", 3" 2" 2"
Width 7", 10", 12", 18" 7", 10", 12" 7", 10", 12", 18"
Hole number 3, 5, 6, 10 Holes 3, 5, 6 Holes 3, 5, 6, 10 Holes



13 Holes, 24", 16 Holes, 30" Width
Material galvanized steel galvanized steel
Gauge 11Ga. 11Ga
Channel Depth 2", 3" 2", 3", 4"
Width 24" 30"
Hole number 13 Holes 16 Holes

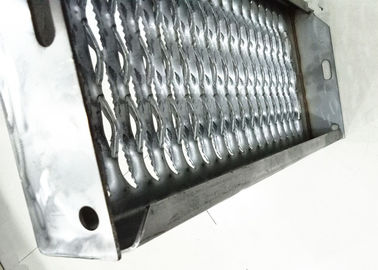

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 1



safety grid stand out for its anti-slip serrated surface qualities. It is very well suited to the automotive, construction and

industrial sector.



Maximum lengths:

  • Untreated or galvanised steel: 6,000 mm.
  • Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
  • Aluminium: 6,000 mm.

Correct installation way makes good use of Perforated Metal Grip Strut Grating

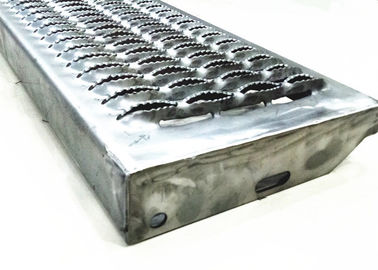

180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs 2
