Product Details:
|
| Name: | Shopping Mall Ceiling Panel | FRAME TYPE: | Square Tube Frame |
|---|---|---|---|
| Frame Size: | 50mmx50mm | Common Size: | 950x4880mm |
| Weight: | 29kgs Per Piece | Mesh Size: | 8mmx15mm |
| Custom Design: | Support | ||
| High Light: | woven wire screen mesh,architectural steel mesh |
||

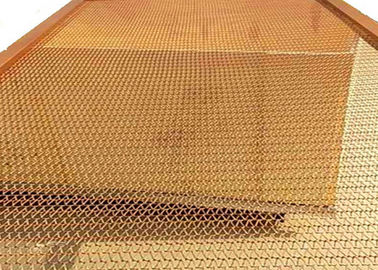

Details of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
7.ISO9001-2008 Quality certification management system
8. 24 hours Hot line/whatsapp 0086-13363891298, wechat :535876736
|
frame design
|
surface teratment
|
pattern design
|
accessories
|
|
steel sheet frame
L type frame
V type frame
U type Frame
square tube frame
round rod frame
|
Spraying coated
PVD
pvdf for aluminum material
antique brass/copper
plating color for ss
colors to be your requirements
|
the pattern type is made of crimped rod wire and spring flat wire or round wire.
|
round ring
blot
screw
anchors
support steel
|
frame types of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts
 |
|
|
| round ring with blot frame of spiral weave wire mesh | fixing bolt frame of spiral weave wire mesh | square tube with blot frame of spiral weave wire mesh |
other mesh patterns specification of spiral weave mesh
|
Specification Coding |
Nominal Belt Thickness |
Lateral |
Coil Wire Dia. (mm) |
Crimped Cross Wire Pitch down length (mm) |
Crimped Cross Wire Dia (mm) |
|
18-16-16-16 |
7.7 |
16.94 |
1.63 |
19.05 |
1.63 |
|
18-14-16-14 |
8.9 |
16.94 |
2.03 |
19.05 |
2.03 |
|
30-17-24-17 |
7.3 |
10.16 |
1.42 |
12.7 |
1.42 |
|
30-16-24-16 |
6.7 |
10.16 |
1.63 |
12.7 |
1.63 |
|
42-18-36-18 |
6.0 |
7.26 |
1.22 |
8.47 |
1.22 |
|
42-17-36-17 |
6.0 |
7.26 |
1.42 |
8.47 |
1.42 |
|
42-16-36-16 |
6.4 |
7.26 |
1.63 |
8.47 |
1.63 |
|
48-17-48-17 |
6.1 |
6.35 |
1.42 |
6.35 |
1.42 |
|
48-16-48-16 |
6.4 |
6.35 |
1.63 |
6.35 |
1.63 |
|
60-20-48-18 |
4.0 |
5.08 |
0.91 |
6.35 |
1.22 |
|
60-18-48-18 |
5.2 |
5.08 |
1.22 |
6.35 |
1.22 |
|
60-18-60-18 |
5.6 |
5.08 |
1.22 |
5.08 |
1.22 |
|
|
|
applications of Spiral Weave Mesh Type Shopping Mall Ceiling Panel With Install Parts
Spiral woven wire fabric can be used as balustrade or handrail in balcony or stairs.
Spiral woven wire fabric is used as wall cladding in the parking.
Spiral woven wire fabric is widely used as facade cladding in buildings.
Spiral woven wire fabric is widely used as space divider in the restaurants or offices.
