Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L

Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L

    • Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L
    • Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L
    • Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L
    • Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L
  • Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO9001:2008
    Model Number: Architectural Mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: wooden case
    Delivery Time: 7 days after the payment
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 500 square meters per 7 days
    Contact Now
    Detailed Product Description
    Product Name: Architectural Mesh Material: Stainless Steel 304,304l,316,316l/COPPER
    Width: Less Than 3meter Small Order: Available
    Customized: Support Surface Treatment: Spraying Coated



    Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L



    Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern details:


    1.material: stainless steel 304, ss304l,ss316, ss316l, aluminum, steel, copper

    2.surface treatment: PVD finish,an anodizing , spraying coated

    3. small order available, sample support for common size

    4. frame design support.

    5.frie rate:A grade



    Specification of archiectural mesh/ metal mesh with woven pattern



    Material Stainless steel & Copper Open Area 32%
    Warp Diameter 2mm*2 total Thickness 6mm
    Warp Pitch 10mm Surface spraying
    Weft Diameter 2mm*3 Max High 4 meter
    Weft Pitch 10mm Max Wide 3 meter
    Weight 14kgs/m2 Application room divider
    pattern rattan  weave type plain




    Note of archiectural mesh/ metal mesh with woven pattern



    for the open area, it is from 0%-68%. the standard size mesh aperture are 10mmx10mm, 15mmx15mm, 20mmx20mm, 30mmx20mm,50mmx50mm.

    standard color: white, black, gold or grey, others can be customization

    Metal mesh has fire protection and long service life compared to rattan products

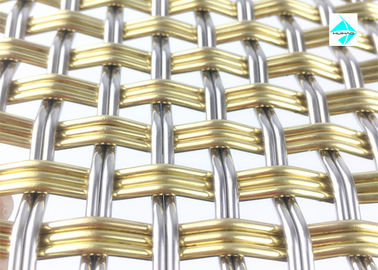

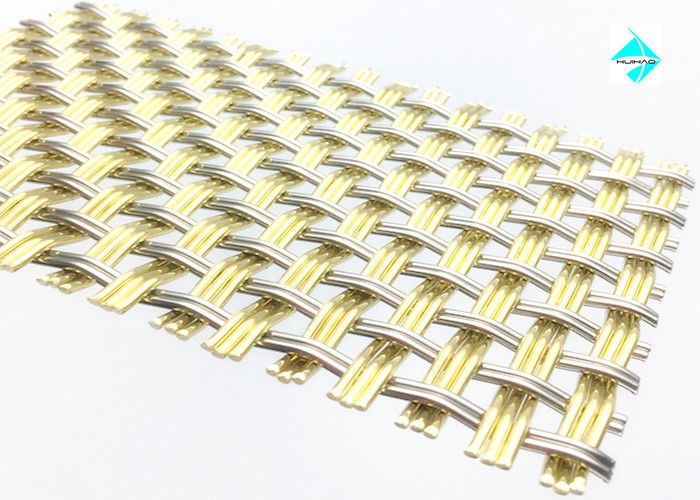

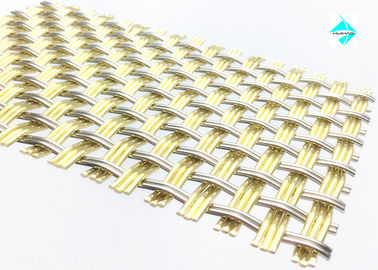

    Images of archiectural mesh/ metal mesh with woven pattern



    Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L

    Architectural Mesh In Stainless Steel, Metal Mesh with Woven Pattern 3.7m L
