Product Details:
|
| Product Name: | Self Adhesive Insulation Anchor | Material: | Galvanized Steel |
|---|---|---|---|
| Anchor Length: | 15-300mm | Base Size: | 50mmx50mm |
| Small Order: | Available | Customization: | Support |
| High Light: | rockwool insulation pins,insulation anchors |
||
Specification of Self adhesive insulation anchors
1.material: mild steel , stainless steel, aluminum
2. surface treatment: zinc coating, copper plated and polished for anvhor pins
3. standard: JG149-2003
4. small order are available
5. customization are acceptable
Technical data sheet of self adhesive insulation anchors
| square base size | anchor diameter | anchor length |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 15mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 25mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 40mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 50mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 55mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 63.5mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 70mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 89mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 104mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 110mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 120mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 140mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 160mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 180mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 190mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 203mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 280mm |
| 50mmx50mm | 10ga, 3mm, 12ga, 14ga | 300mm |
Special Material of self adhesive insulation anchors
| Steel NO. | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr≤ | Ni | Mo | Cu≤ | N |
|
S32750(SAF2507)
00Cr25Ni7Mo4N
|
0.03 | 1.20 | 0.8 | 0.020 | 0.035 | 24.0/26.0 | 6.0/8.0 | 3.0/5.0 | 0.50 | 0.24/0.32 |
|
S31803(SAF2205)
00Cr22Ni5Mo3N
|
0.03 | 2.00 | 1.0 | 0.020 | 0.030 | 21.0/23.0 | 4.50/6.50 | 2.50/3.50 | 0.08/0.20 | |
|
S31500(3RE60)
00Cr18Ni5Mo3Siz
|
0.03 | 1.2/2.00 | 1.4/2.00 | 0.030 | 0.030 | 18.0/19.0 | 4.25/5.25 | 2.50/3.00 | 0.05/0.10 |
how to choose the best quality self adhesive insulation anchors?
1.bases are tight with pins
2.Pins are soft, easy bend over
3.double faced adhesive has good stickiness
4.the pin length must more than 10-20mm than insulation materials
Advantages of the self adhesive insulation anchors
1. Environmentally-friendly, our product meet American standard, Japanese standard, European standard and German standard.
2. Light, dust free, fire retardant (A) and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration.
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
6.Best results are obtained when ambient temperature is above 40° F at the time of application
7.A firm straight, forward pressure should be used. Do not twist

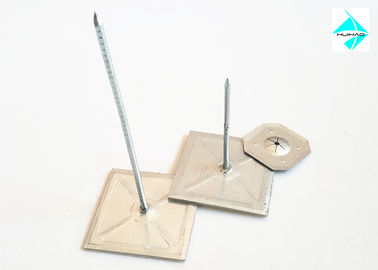

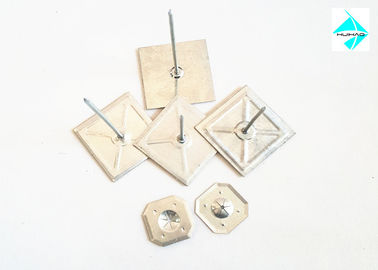

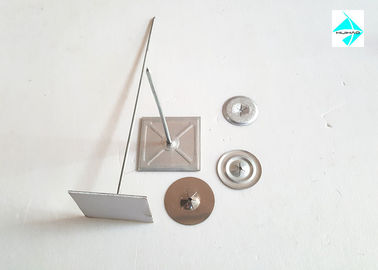

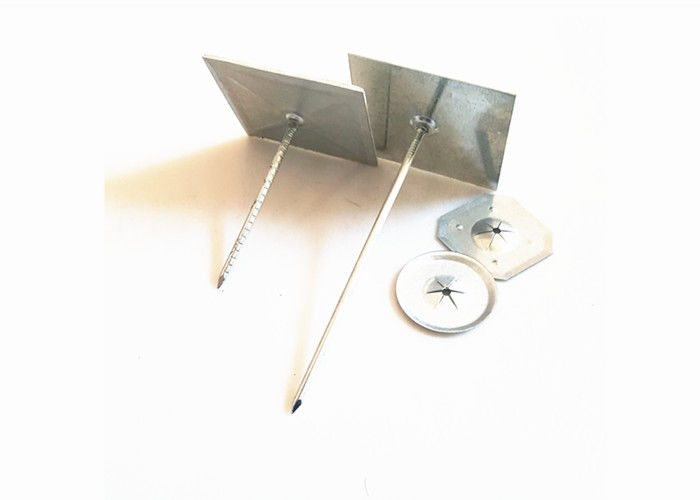

images details of self adhesive insulation anchors
