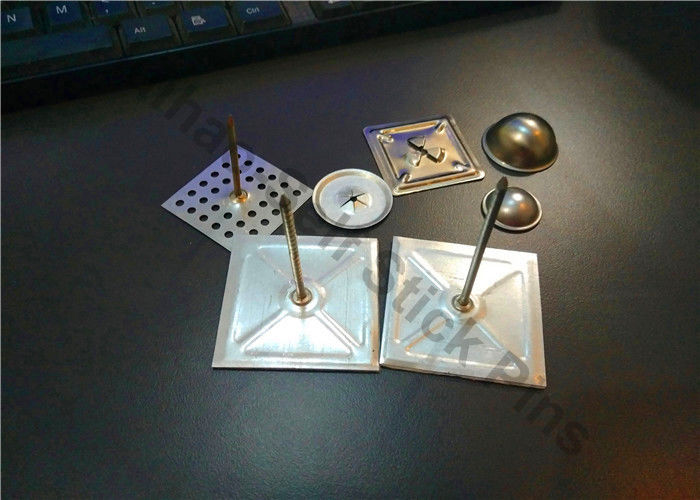

Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base

Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base

    • Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base
    • Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base
    • Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base
    • Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base
  • Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO9001:2008
    Model Number: stick insulation pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: carton + pallets
    Delivery Time: 7 days after the payment
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10000pcs per day
    Contact Now
    Detailed Product Description
    Product Name: Stick Insulation Pins Material: Galvanized Steel, Aluminum, Stainless Steel
    Length: 30mm-230mm Application: Fixing Insulation Material
    Small Order: Support Sample: Support



    Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base



    Detail Specification Of Insulation Stick Pins

    • Material:Galvanized Steel, Aluminum, Stainless steel

    • Usage:Air Conditioner

    • Nail Length:25mm - 165mm (1" to 6 1/2")

    • Nail Diameter:Dia 2.7mm (12GA)

    • Base Size:50mmx50mm (2"X2")

    • Base Material Thickness:0.4mm

    • Lock Washer Size: all kinds of sizes and shapes.

    • Lock Washer Thickness:0.4mm

    • Specification:Designed for different rectangle air duct

    HUIHAO Insulation Stick Pins



    Pin diameter Base size Pin length in common
    12Ga 2'x'2'' 25mm
    12 Ga 2'x'2'' 50mm
    12 Ga 2'x'2'' 63mm
    12 Ga 2'x'2'' 89mm
    12 Ga2 2'x'2'' 102mm
    12 Ga 2'x'2'' 140mm
    12 Ga 2'x'2'' 200mm



    The length of the Self Adhesive Insulation Pins also could be customized .



    Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base



    Application Of Insulation Stick Pins



    Duct-lining
    Ducts of air-conditioner
    Glass-wooland rock-wool in soundproofing works

    The pins could have washers together



    Advantages of the Insulation Stick Pins



    1. Environmentally-friendly

    2. Light, dust free, fire retardant and easy to install

    3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding

    4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning

    5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning



    APPLICATION of Insulation Stick Pins



    Best results are obtained when ambient temperature is above 40° F at the time of application. Remove the release paper from

    the base plate and apply hanger to a suitable flat surface.



    A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important

    that the release paper not be removed until ready to apply the hanger.



    Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50% relative

    humidity. It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended
