Product Details:
|
| Material: | Copper Coating Steel Or Stainless Steel Or Aluminum | Finished: | Copper Coating |
|---|---|---|---|
| Diameter: | M3 To M8 Is Standard | Length: | As Your Requirement |
| High Light: | copper plated insulation pins,threaded stud welder |
||
Coppered Steel Threaded Stud Welder Pins 1/4" For Capacitor Discharge Welder
>>> Introduction To The Stud Welder Pins
Stud Welder Pins Specification:
| Material: Aluminum, Copper Plated Steel, Stainless Steel | |||||
| M3 | M4 | M5 | M6 | M8 | M10 |
| M3×6mm | M4×6 mm | M5×6 mm | M6×8 mm | M8×10 mm | M10×15 mm |
| M3×8 mm | M4×8 mm | M5×8 mm | M6×10 mm | M8×12 mm | M10×20 mm |
| M3×10 mm | M4×10 mm | M5×10 mm | M6×12 mm | M8×15 mm | M10×25 mm |
| M3×12 mm | M4×12 mm | M5×12 mm | M6×15 mm | M8×18 mm | M10×30 mm |
| M3×15 mm | M4×15 mm | M5×15 mm | M6×16 mm | M8×20 mm | M10×35 mm |
| M3×16 mm | M4×16 mm | M5×16 mm | M6×18 mm | M8×22 mm | M10×40 mm |
| M3×18 mm | M4×18 mm | M5×18 mm | M6×20 mm | M8×25 mm | M10×45 mm |
| M3×20 mm | M4×20 mm | M5×20 mm | M6×22 mm | M8×30 mm | M10×50 mm |
| M3×22 mm | M4×22 mm | M5×22 mm | M6×25 mm | M8×35 mm | |
| M3×25 mm | M4×25 mm | M5×25 mm | M6×30 mm | M8×40 mm | |
| M3×30 mm | M4×30 mm | M5×30 mm | M6×35 mm | M8×45 mm | |
| M3×35 mm | M4×35 mm | M5×35 mm | M6×40 mm | M8×50 mm | |
| M3×40 mm | M4×40 mm | M5×40 mm | M6×45 mm | ||
| M3×45 mm | M4×45 mm | M5×45 mm | M6×50 mm | ||
| M3×50 mm | M4×50 mm | M5×50 mm | |||

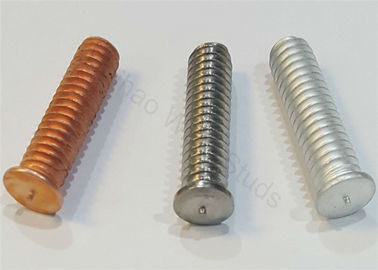

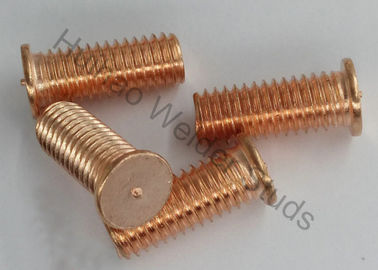

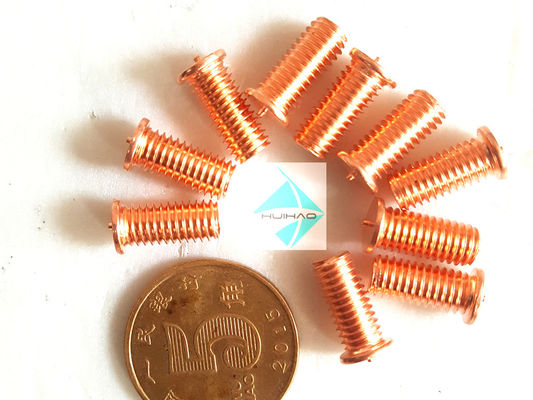

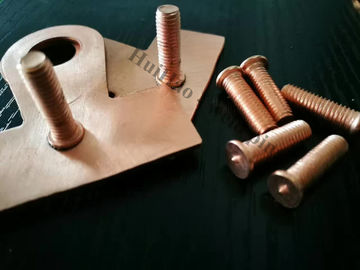

>>> Detailed Image Of The Stud Welder Pins
Materials
Low Carbon Steel
| C - 0.23% max. | P - 0.04% max. |
| Mn - 0.90% max. | S - 0.05% max. |
Stainless Steel AISI grade - 302/304/305 std. Other grades available upon request.
Aluminum ALLOY - 1100 & 5000 seriesOther alloys available upon request.
Brass ALLOY - (lead free) 70-30 std. Other alloys available upon request.
Mechanical Properties
Low Carbon Steel
Tensile - 60,000 psi (min.)
Yield - 50,000 psi (min.)
Elongation - 20% (in 2 inches)
Stainless Steel
Values for various grades available upon request.
Aluminum / Brass
Values for various alloys available upon request.
Plating
Galvanized and Copper plating are available - Low Carbon Steel
Does not apply to Stainless - Stainless Steel
Annealing
Studs are annealed where required. - Low Carbon Steel / Stainless Steel
Advantages Of The Stud Welder Pins
>>> Package
50pcs per cases,6 small cases in a box 48 boxes on a pallet
>>> Delivery
Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
