No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated

No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated
No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated

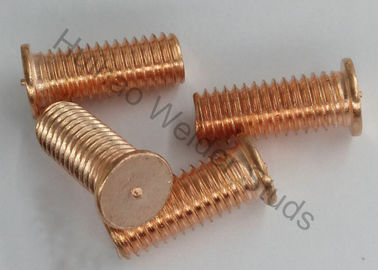

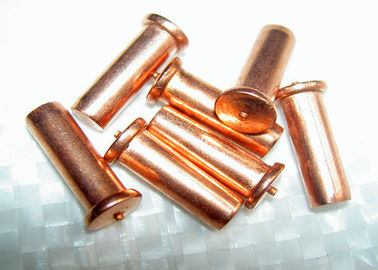

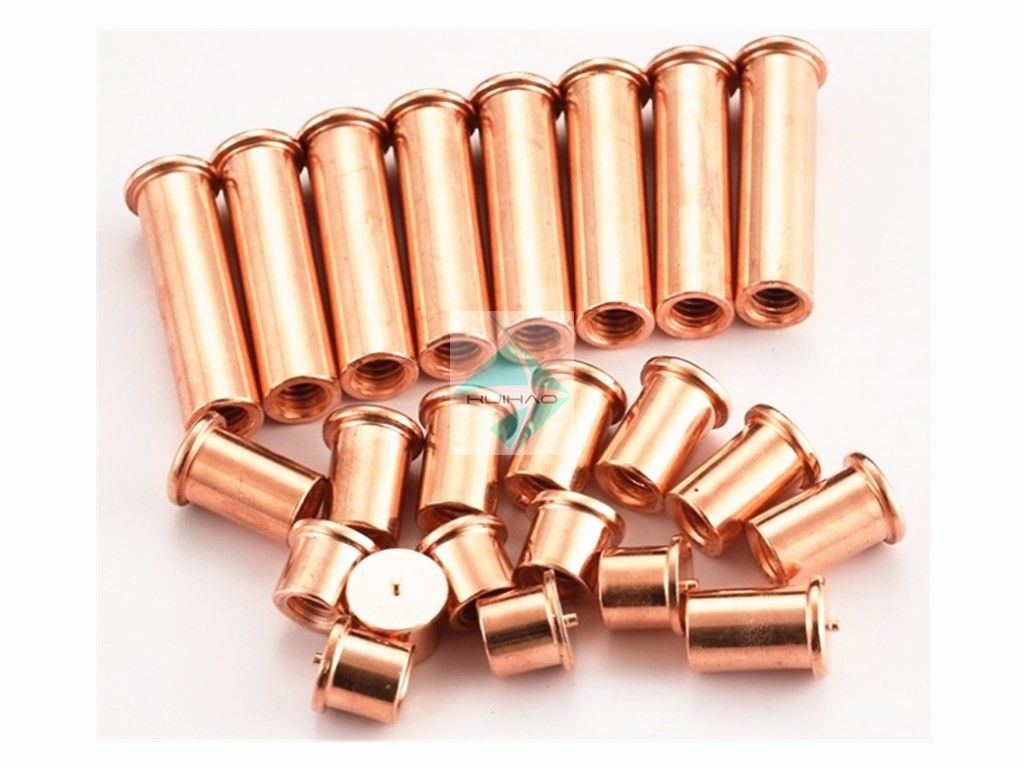

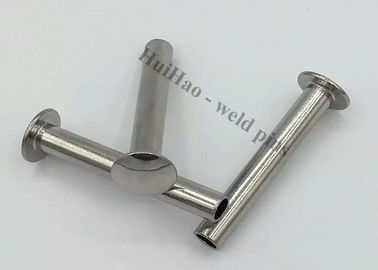

No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated

Large Image :  No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated

Product Details:
Place of Origin: China
Brand Name: Huihaocustom
Certification: ISO9001-2015
Model Number: Stud Welding Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Stud Welding Pins,50pcs per cases,6 small cases in a box 48 boxes on a pallet
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 100000pcs per 20 days

No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated

Description
Material: Copper Coating Steel Or Stainless Steel Or Aluminum Finished: Zinc (white, Blue, Yellow), Chrome Or Nickle Plated
Diameter: M3 To M10 Length: As Your Requirement
Type: Precision Nonstandard Parts Grade: 4.8
High Light:

cd weld pins

,

threaded stud welder



No Thread Flanged Stud Welding Pins M3 M10 Diameter with Chrome , Nickle Plated



>>> Introduction To The Stud Welding Pins

  • Stud Welding Pins are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
  • Stud Welding Pins are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
  • Standard material for Flanged CD weld studs are: Copper Plated Steel, Stainless Steel, Aluminum
  • The stud flange is designed according to EN ISO 13918.
  • Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)



Imperial Thread Flanged Stud Welding Pins specification



Imperial
Thread
"D"
Flange
Diameter
"FD"
Minimum
Length
"L"
4-40 0.187 0.312
6-32 0.218 0.312
8-32 0.250 0.312
10-32 0.250 0.312
10-24 0.250 0.312
1/4-20 0.310 0.375
5/16-18 0.380 0.500
3/8-16 0.437 0.625



Metric Thread Flanged Stud Welding Pins specification



Metric
Thread
"D"
Flange
Diameter
"FD"
Minimum
Length
"L"
M3-0.5 5.0 6.0
M4-.07 6.0 8.0
M5-.08 7.0 8.0
M6-1.0 8.0 10.0
M8-1.25 10.5 10.0
M10-1.50 11.8 16.0



No Thread Flanged Stud Welding Pins specification




Diameter
"D"
Flange*
Diameter
"FD"
Minimum
Length
"L"
.115 .187 .312
.125 .187 .312
.141 .218 .312
.156 .250 .312
.161 .250 .375
.187 .250 .500
.215 .312 .625
.250 .312 .625
.274 .375 .750
.312 .375 .750
.375 .437 .750

No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated 0
No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated 1



>>> Detailed Image Of The Stud Welding Pins



Materials


Low Carbon Steel



C - 0.23% max. P - 0.04% max.
Mn - 0.90% max. S - 0.05% max.



Stainless Steel AISI grade - 302/304/305 std. Other grades available upon request.
Aluminum ALLOY - 1100 & 5000 seriesOther alloys available upon request.
Brass ALLOY - (lead free) 70-30 std. Other alloys available upon request.



Mechanical Properties


Low Carbon Steel
Tensile - 60,000 psi (min.)
Yield - 50,000 psi (min.)
Elongation - 20% (in 2 inches)



Stainless Steel
Values for various grades available upon request.



Aluminum / Brass
Values for various alloys available upon request.



Plating
Galvanized and Copper plating are available - Low Carbon Steel
Does not apply to Stainless - Stainless Steel



Annealing
Studs are annealed where required. - Low Carbon Steel / Stainless Steel



No Thread Flanged Stud Welding Pins M3 M10 Diameter With Chrome Nickle Plated 2



Advantages of Stud Welding Pins

  • Welding process becomes fast and time saving

  • Saves material as the component to which the studs are welded is not weakened by drilling

  • Plate thickness can be reduced

  • Saves labor increase design and production flexibility

  • Improved quality and wider choice of metals etc.

Stud Welding Pins Used In
  • Automotive Industry
  • Construction Industry
  • Electronics Industry
  • Electrical Industry
