Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems

Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems
Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems

Large Image :  Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Insulation anchor Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: carton size 46.5*33.5*36.5cm,500pcs/Carton or 1000pcs/Carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 6000000pcs per year

Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems

Description
Shank Diameter: 8mm Material Of Plug Sleeve: Impact Resistant Copolymer Of Polypropylene PP
Nail Pin Material: Polyamide PA 6.0 (Nylon) Reinforced With Fibre Glass. Head Diameter: 50,55,60mm
Length: 30-120mm Colors: White ,green ,blue ,yellow
High Light:

rockwool insulation pins

,

insulation anchors



Plastic Insulation anchor Pins Of Jointless Facade Thermal Insulation Systems



what is Plastic Insulation Anchor Pins?



plastic Insulation anchor pins is a special engineering plastic expansion nail that fixes the insulation board to the wall. Insulation nails are special anchors for exterior wall insulation, which are widely used in building decoration and anchoring of wall insulation houses. It consists of galvanized screws, nylon risers and fixed discs.



According to the thickness of the insulation layer, it is divided into various specifications:


The plastic insulation anchor pins consists of three parts: one is a sleeve made of nylon; the other is a galvanized steel screw in the plug sleeve; and the third is a nylon disc in front of the sleeve (for gland insulation board). Its length varies depending on the thickness of the insulation board.



plastic Insulation anchor pins are divided into: split insulation nails and Siamese insulation nails



the Plastic Insulation anchor Pins specification table



The new standard 158-2004 has also been implemented. The new standard :


1.Single insulation nail bearing capacity: >0.8KN
2.Thermal conductivity >0.004
3.Anchoring the outer disk of the nail >56MM.

4.The disc anchor has a nominal diameter of not less than 60 mm and a tolerance of 1.0 mm. The nominal diameter of the expansion sleeve shall not be less than 8 mm and the tolerance shall be ± 0.5 mm.
5. Standard value of anchorage capacity of anchor bolt: standard value of tensile load capacity of anchor bolt Fk≥0.60
6. Anchor bolt disc tensile force standard value: disc pullout standard value Frk≥0.50



Model Aiguille diameter The depth of drill

The minimum

depth of anchor

Length of anchor bolt

The maximum

depth of anchor

8/60 8 40 30 60 30
8/70 8 40 30 70 40
8/80 8 40 30 80 50
8/90 8 40 30 90 60
8/100 8 40 30 100 70
8/120 8 50 40 120 80
8/140 8 60 50 140 90



Plastic Insulation anchor Pins Installation recommendations:

  • drill diameter: 10 mm,
  • minimum embedment depth: ETA 25mm

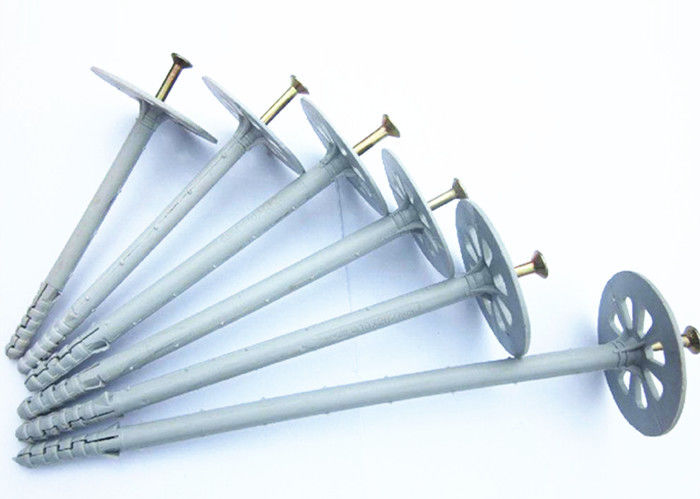

images of plastic insulation anchor pins

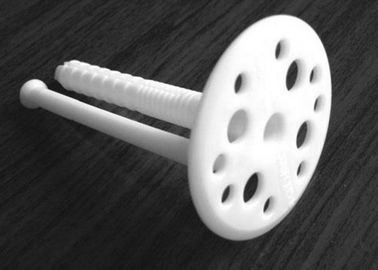

Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems 0

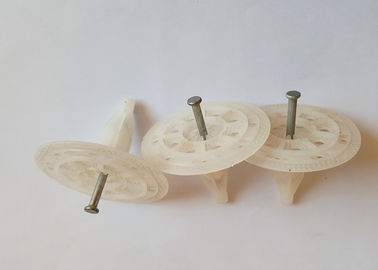

Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems 1

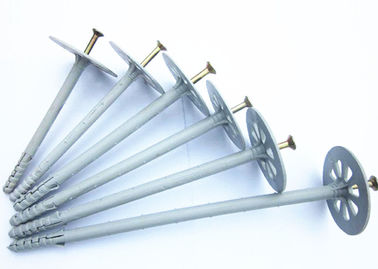

Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems 2



Application Of Plastic Insulation anchor Pins



Widely used in the construction and decoration, the anchoring aspect of the wall insulation house. It has anti-aging, anti-temperature sudden change, anti-corrosion, cold and heat resistance; high bearing capacity, high pressure bearing, good tensile performance; not easy to deform, moisture, vibration, and good thermal insulation after loading. Easy to install, no special installation tools are required. The galvanized screw solves the corrosion problem well, has good durability, and has low heat transfer performance of nylon material. There is no cold bridge in winter, which is energy efficient. According to the wall material and the material of the anchored external wall, it is roughly divided into solid wall insulation nails, special insulation nails for hollow bricks, special insulation nails for steel mesh and large molds.



Lenght [mm] Max. insulation
thickness [mm]
Package
[pcs]
70mm 40mm 250 Stk
90mm 60mm 250 Stk
120mm 90mm 250 Stk
140mm 110mm 250 Stk
160mm 130mm 250 Stk
180mm 150mm 250 Stk
200mm 170mm 250 Stk
220mm 190mm 250 Stk



Plastic Insulation Anchor Pins Of Jointless Facade Thermal Insulation Systems 3



Performance data for single anchor in tension without influence of edge distance and spacing



Concrete min. C16/20 Concrete C12/15 Solid brick Sand-lime solid brick Perforated ceramic brick Perforated ceramic brick (i.e. Porotherm) MEGA MAX Sand-lime hollow brick Lightweight concrete solid block Lightweight concrete hollow block Aerated concrete
25 25 25 25 40 40 40 25 60 40 60
0.70 0.78 0.72 0.89 0.74 0.57 0.67 0.96 0.78 0.75 0.25
0.50 0.50 0.50 0.60 0.40 0.40 0.30 0.60 0.50 0.40 0.10
0.25 0.25 0.25 0.30 0.20 0.20 0.15 0.30 0.25 0.20 0.05
0.18 0.18 0.18 0.21 0.14 0.14 0.11 0.21 0.18
