Product Details:
|
| Material: | STAINLESS STEEL | Pin Diameter: | M3-M12 |
|---|---|---|---|
| Pin Length: | LESS THAN 4" | Welder Machine Type: | Capacitor Discharge |
| High Light: | copper plated insulation pins,threaded stud welder |
||
>>> Introduction To Stud welding pins
Other diameters, lengths and materials are available by special order...minimum quantities may apply.Call Cutlass for part numbers not shown
material of CD Stud Welding Pins with Internal Female Thread and Flanged
|
MATERIAL |
MILD STEEL |
STAINLESS STEEL |
|
|
C - 0.23% max. |
P - 0.04% max. |
AISI grade - 302/304/305/316 std. |
|
|
Mn - 0.90% max. |
S - 0.05% max. |
Other grades available upon request. |
|
|
MECHANICAL PROPERTIES |
Tensile |
60,000 psi (min.) |
Values for various grades available upon request. |
|
Yield |
50,000 psi (min.) |
||
|
Elongation |
20% (in 2 inches) |
||
|
PLATING |
Plating is not standard. Cadmium, Copper, Nickel, and Zinc available upon customer request. |
||
>>>Specification Of The CD Stud Welding Pins with Internal Female Thread and Flanged
|
D |
A |
B |
L |
Material |
|
7/32" |
1/8" |
0.030" |
1/4",3/8",1/2",5/8",3/4",1",1.1/4",1.1/2" |
mild steel,stainless steel,aluminum |
|
5/32" |
1/4" |
0.030" |
1/4",3/8",1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2" |
mild steel,stainless steel,aluminum |
|
3/16" |
1/4" |
0.030" |
1/4",3/8",1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2" |
mild steel,stainless steel,aluminum |
|
0.215" |
5/16" |
0.030" |
1/4",3/8",1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2", 2.1/2" |
mild steel,stainless steel,aluminum |
|
1/4" |
5/16" |
0.030" |
1/4",3/8",1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2", 2.1/2",3",3.1/2",4" |
mild steel,stainless steel,aluminum |
|
5/16" |
3/8" |
0.040" |
1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2", 2.1/2",3",3.1/2",4" |
mild steel,stainless steel,aluminum |
|
3/8" |
1/2" |
0.040" |
1/2",5/8",3/4",1",1.1/4",1.1/2",1.3/4",2", 2.1/2",3",3.1/2",4" |
mild steel,stainless steel,aluminum |
|
D |
C |
H1 |
E |
B |
A |
H1.2 |
L |
|
5 |
m3 |
5.00 |
2.5 |
6.5 |
0.75 |
0.7-1.4 |
8-50 |
|
6 |
m4 |
6.00 |
3.0 |
7.5 |
0.75 |
0.7-1.4 |
8-60 |
|
7.0 |
m5 |
7.00 |
3.0 |
9.0 |
0.75 |
0.7-1.4 |
8-60 |
|
8.7 |
m6 |
8.00 |
3.0 |
10.0 |
0.85 |
0.7-1.4 |
8-60
|

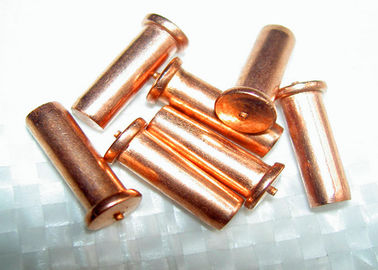

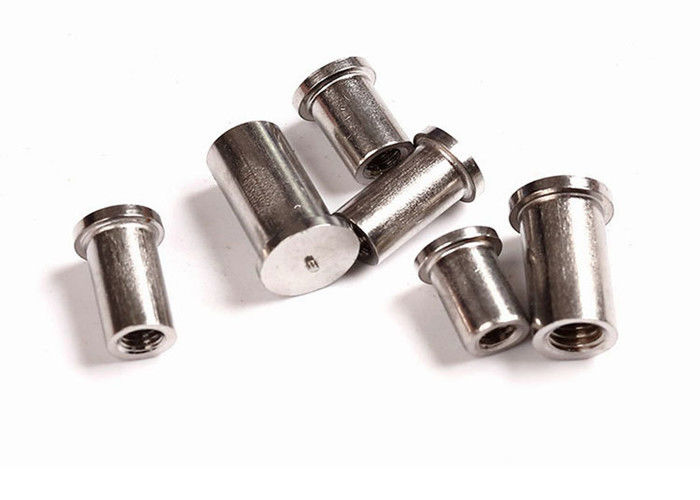

>>> image of CD Stud Welding Pins with Internal Female Thread and Flanged
>>> Package Of Capacitor Discharge stud Welding Pins
1.500pcs per bag, 10 bags per carton.72 cartons per pallet
2.1000pcs per carton, 48 cartons per pallet.
3. to be your requirements
