Product Details:
|
| Name: | Stainless Steel Insulation Wall Plugs | Material: | SS304, Galvanized Steel As Standard |
|---|---|---|---|
| Pin Dia: | 12ga Or 14ga As Standard | Pin Length: | 2-1/2" Or 4-1/2" As Standard |
| Washer Size: | 30mm,38mm In Common | Small Order: | Available |
| High Light: | rockwool insulation pins,duct insulation pins |
||
insulation wall plugs specification
| Pin Size | Pin Dia | Pin Length | Plate Size | Packaging | Pin Weight |
| M8x50 | 8mm | 50mm | 30mm / 35mm | 250pcs / carton | 10.2g |
| M8x60 | 8mm | 60mm | 30mm / 35mm | 250pcs / carton | 11.2g |
| M8x90 | 8mm | 90mm | 30mm / 35mm | 250pcs / carton | 14.8g |
| M8x110 | 8mm | 110mm | 30mm / 35mm | 250pcs / carton | 17.3g |
| M8x140 | 8mm | 140mm | 30mm / 35mm | 250pcs / carton | 20.8g |
| M8x170 | 8mm | 170mm | 30mm / 35mm | 250pcs / carton | 24.4g |
| M8x230 | 8mm | 230mm | 30mm / 35mm | 250pcs / carton | 34.4g |
Fixed either manually using a conventional hammer or driven home using a hammer drill fitted with an SDS adapter. The
anchor has a wide integral washer-like retaining head making it quick and easy to fix, with or without pilot holes.

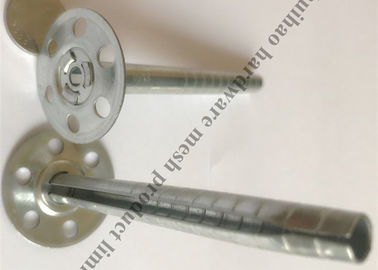

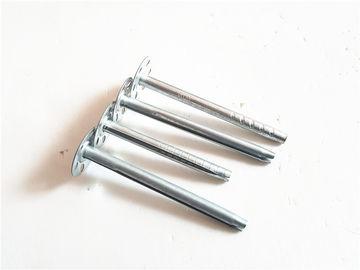

images of Stainless Steel Insulation Wall Plugs
insulation wall plugs Quick Guide
High degree of fire resistance
Quick and easy to use
Fewer fixings - reduced labour
Reduced cold bridging
Dependable performance
Highly versatile in a wide range of construction materials
Fix with hammer or SDS drill adapter
Fixes into concrete and masonry with tiny pilot hole
Fixes directly into lightweight block without pre-drilling
►HUIHAO Perforated Base metal insulation anchor nails
| Material | Pin diameter | Base size | Pin Length |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 1 " |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 1 5 / 8'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 2 1 / 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 3 1 / 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 4 1 / 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 5 1 / 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 6 1 / 2'' |
| Galvanized steel ,ss , aluminum | 12ga ( 0.106 " ) | 2''X2'' | 8'' |
| The pins length also could be produced as request | |||

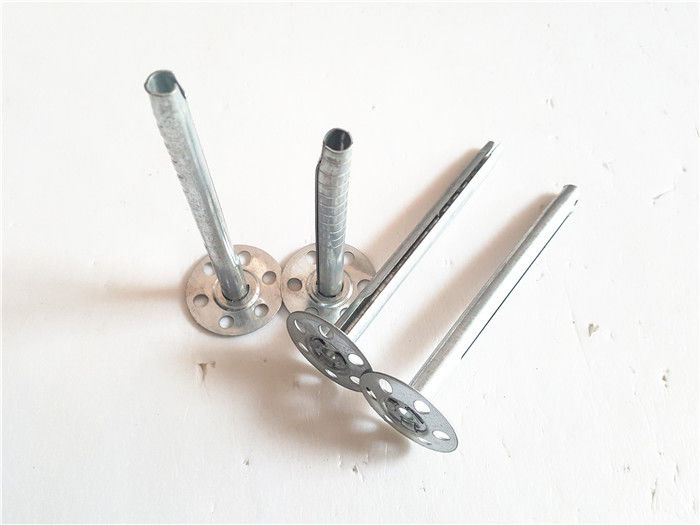

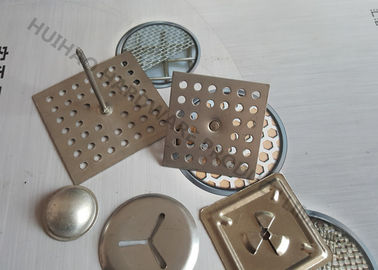

images of Perforated Base metal insulation anchor nails
Perforated base insulaton anchor nails are used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool
and rock-wool in soundproofing works, and for the duct-lining
