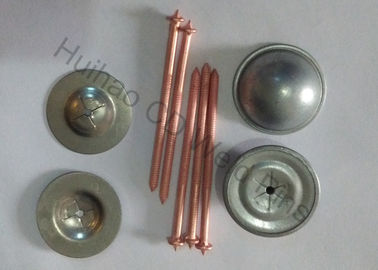

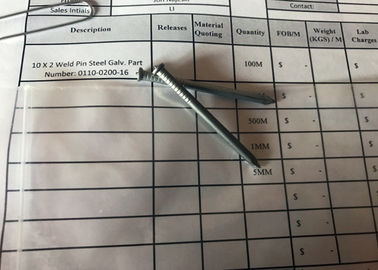

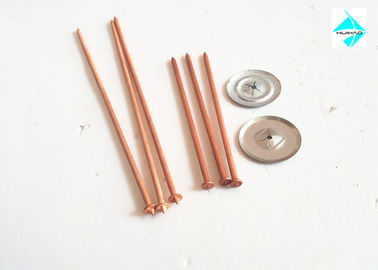

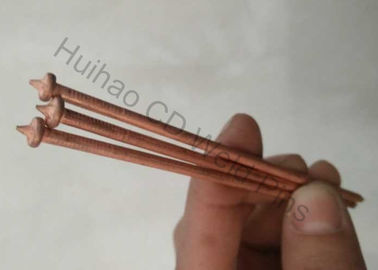

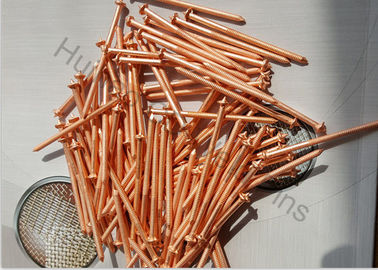

3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder

3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder
3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder
3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder

Large Image :  3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO9001-2008
Model Number: CD Insulation Nails
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1. 500pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 500000PCS per 20 Days
Contact Now

3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder

Description
Material: Carbon Steel Or Stainless Steel Or Aluminum Finished: Copper Coating Or Galvanized Steel
Diameter: 10 Gauge / 12Gauge / 14 Gauge / 3mm Length: As Your Requirement
Small Order: Available Sample: Avaulable
High Light:

copper plated insulation pins

,

cd weld pins





3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder


>>> Introduction To The Capacitor Discharge Weld Pins

  • The pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.
  • CFN pins have a weld tip designed for the Capacitors Discharge welding process, but may also be welded with the Short Cycle Drawn Arc weld process. They are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
  • Other grades, i.e. AISI 316 (A4), AISI 310 are available on request
  • Copper coating is standard on mild steel pins.
  • Self-Locking washers are available in a variety of sizes, shapes and materials.

specification of Capacitor Discharge Weld Pins



10 Ga. (0.135") Capacitor Discharge Weld Pins


Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
Diameter 10 Ga. (0.135")
Length 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9"


12 Ga. (0.105") Capacitor Discharge Weld Pins


Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
Diameter 12 Ga. (0.105")
Length 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8"


14 Ga, 2mm (0.080") Capacitor Discharge Weld Pins


Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
Diameter 14 Ga, 2mm (0.080")
Length 3/4" 1" 1-1/2" 2" 2-1/2" 3"


3mm Capacitor Discharge Weld Pins


Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
Diameter 3mm
Length 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm



images of Capacitor Discharge Weld Pins



3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 0


3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder 1


---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.

---> Nail point is standard - available with "blunt end" as special order.

>>> Application Of The Capacitor Discharge Weld Pins

Being in use of car manufacturing, train stations, Industrial building, shipbuilding, household adornment, high stress environment

such as off road construction, large expansion bridges, skyscrapers, power plant, military defense vehicles, and equipment in high

temperature environment.

Huihao copper plated 3mm x 65mm CD Weld Pins Suited For Stud Welding Systems
