Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material

Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material

    • Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material
    • Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material
    • Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material
    • Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material
  • Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Insulation Hangers

    Payment & Shipping Terms:

    Minimum Order Quantity: 30000pcs
    Packaging Details: Insulation Hangers packing details:500 pcs per carton ,48 cartons on one pallet
    Delivery Time: 12 days after the first payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Insulation Hangers Material: Galvanized Steel , Stainless Steel , Aluminum
    Pin Dia: 12 Ga As Standard Base Size: 2' X'2'' As Standard
    Size: 2.7MM X 63.5MM Washer Shape: Round Or Square



    Aluminum Self Adhesive Insulation Pins with 63.5MM Fix Heat Insulating Material


    Detail Specification Of  the Self Adhesive Insulation Pins
    Material:Low carbon steel, Aluminum or stainless steel.
    Plating pin: galvanized coating or copper plated
    Plating base: galvanized coating,
    Self-locking washer: Available in all kinds of sizes, shapes and materials
    Base size 2"×2" /50mm square base

    Pin size :12GA( 2.7mm) -3mm
    Pins length:1" 1-5/8" 1-1/2" 3-1/2" 4-1/2" 5-1/2" 6-1/2" etc
    Accept customization for other lengths



    HUIHAO Self Adhesive Insulation Pins


    Pin diameterBase sizePin length in commonWasher
    2.7mm or 0.106''2''x2''base (50mmx50mm)1'' (25mm)Available
    2.7mm or 0.106''2''x2''base (50mmx50mm)1 1 / 2''(38mm)Available
    2.7mm or 0.106''2''x2''base (50mmx50mm)1 5 / 8'' (48mm)Available
    2.7mm or 0.106''2''x2''base (50mmx50mm)3 1 / 2 ‘’(89mm)Available
    2.7mm or 0.106''2''x2''base (50mmx50mm)4 1 / 2 ‘’(114mm)Available
    2.7mm or 0.106''2''x2''base (50mmx50mm)5 1 / 2 ‘’(140mm)Available


    How to install the Self Adhesive Insulation Pins
    1, Clean the surface: Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
    2,Peel off backing:Remove the protective release paper taking care not to touch the adhesive.
    3, stick pin in place: Place the hanger in the required position and press the base against the surface to be insulated
    4 ,pressure the pin and wait 15-20 minutes,

    5.Install insulation and secure with self locking washer


    insulation hangers Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or
    if the finishing coat is tile etc


    Designed Self Adhesive Insulation Hangers / Annular Groove Insulation Hangers

    WIPE SURFACE CLEAN.Anchor should be applied to a clean, dry non-porous surface
    PEEL OFF RELEASE BACKING.NOTE: Double faced foam tape has a one-year active shelf life
    STICK ANCHOR IN PLACE.Select location before contact with surface.Press firmly

    Designed Self Adhesive Insulation Hangers / Annular Groove Insulation Hangers

    APPLY FIRM PRESSURE.20 pounds of pressure should be applied all around the base of the anchor
    ALLOW TO STAND 15-20 MINUTES.This will permit better adhesion to take place

    Advantages of the  Self Adhesive Insulation Pins

    • No adhesive required
    • No toxic fumes
    • No tools needed
    • Positive adhesion
    • Clean, fast & simple

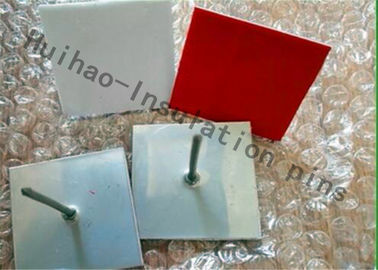

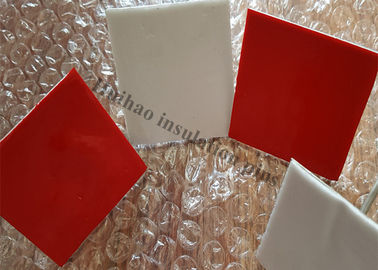

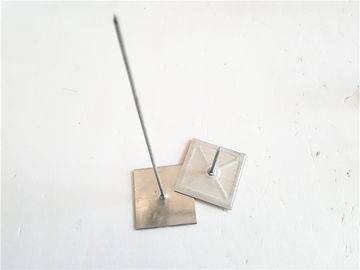

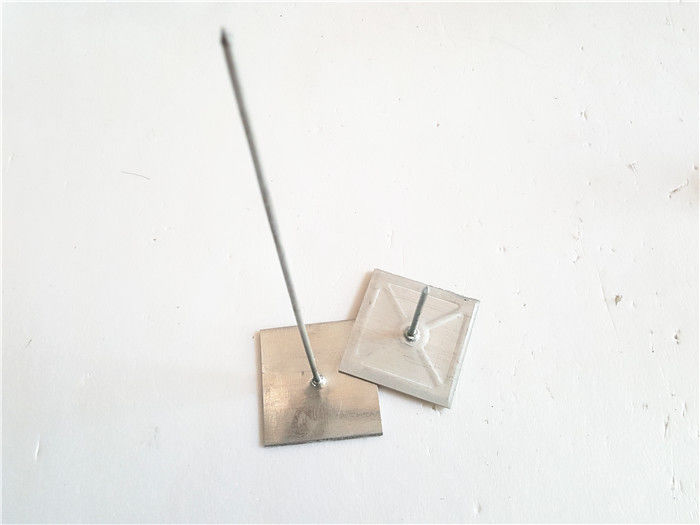

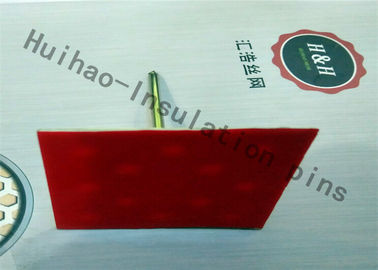

    images of self adhesive insulation pins

    Aluminum Self Adhesive Insulation Pins With 63.5MM Fix Heat Insulating Material
