Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips

Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips

    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
    • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips
  • Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001-2008
    Model Number: self locking washer

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 1000/2000pcs per Carton, also can be packaged as request
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 500000pcs per 25 days
    Contact Now
    Detailed Product Description
    Product Name: Insulation Speed Clips Diameter: 38mm,30mm, 20mm
    Material: Stainless Steel, Galvanized Steel Thickness: 0.5mm
    Application: Fixing Insulation Pins, Anchors Center Hole: 14ga,12ga,10ga,3mm
    Small Order: Available Sample: Support



    Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips



    Material:carbon steel , aluminum , stainlesss teel plate

    Washers/cilps shape: round , square in common

    Pin diameter: 2.7mm,3.0mm in common

    Thickness :0.016'', 0.40mm in common

    Usage:Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and

                 for the duct-lining with insulation pins and anchors



    Insulation Speed Clips/self locking washer specification

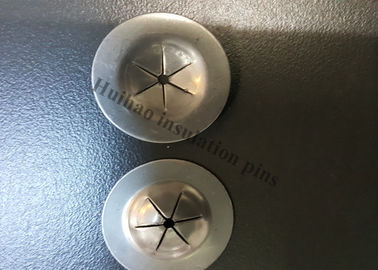

    photos of  round type self locking washer/ speed clips Material Clip shape Clip diameter Pins diameter Clip thickness
    Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips ss, Galv steel Round 22mm 10Ga, 12Ga, 14Ga 0.35mm
    ss, Galv steel Round 28mm 10Ga, 12Ga, 14Ga 0.35mm
    ss, Galv steel Round 30mm 10Ga, 12Ga, 14Ga 0.35mm
    ss, Galv steel Round 35mm 10Ga, 12Ga, 14Ga 0.35mm
    ss, Galv steel Round 38mm 10Ga, 12Ga, 14Ga 0.35mm
    The clips also could be customized



    images of square type insulation speed clips

    Type : WA250 WS 150 WAI25
    Square Stainless Steel Self Locking Washer , Round Type Insulation Speed Clips Diameter 2-1/2x2-1/2 1-1/2x 1-1/2 1-1 /4.x 1-1/8
    Thickness .015 nom. .015 nom. .015 nom.
    Material Mild Steel Mild Steel Mild Steel
    Plating Galv. Galv. Galv.
    Edges/flat or beveled beveled beveled beveled
    Other materials available Alum., S.S. Alum., S.S. Alum., S.S.
    Packaged per carton 1000 1000 1000


    Characteristics of the self locking clips,Insulation Speed Clips



    1. Various size for choose

    2. Quick Mounting

    3. Stallable to all positions and fire-resistant

    4. Ageing resistance, resisting emperature shock, anti-corrosion, cold and heat;

    5. High bearing capacity, high pressure, tensile performance is good;

    6. After loading will not easily be deformated, moistureproof, good thermal insulation

    7. insulation nails size,diameter 3mm,length can be made

    8.Both Round or Square self- locking washers are available as a matter of design or application preference.

    9.The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking.

    10.Most styles of washers are manufactured with a beveled edge to prevent the washer from cutting into the insulation facing,
