OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves

OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves

    • OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves
    • OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves
    • OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves
    • OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves
  • OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Wedge Wire Screen

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: pallets.
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 1200pcs per month
    Contact Now
    Detailed Product Description
    Length: 300-1200mm Material: Stainless Steel
    Filter Rating: 27%-80% Thickness: 3-12mm



    OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves



    Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. They are characterized by

    precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.



    Smooth surface is for filtering, the gap is strip, belonging to the form of surface filtration. As a multiform of automatic filters ( such

    as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter) are widely used in

    various industries of fluid filtration.



    Technical data of wedge wire screen panel



    Length Range Up to 6000 mm
    Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
    Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5*2 2x3 2*4 3*5
    Support Rod

    1.5x2.5

    2x3

    1.5x2.5

    2x3

    1.5x2.5

    2x3

    1.8*2.5

    2x3

    2x3

    2x4

    3x5

    3x6

    3x10

    4x7

    2x4

    3x5

    3x6

    3x10

    4x7

    5x6

    3x5

    3x6

    3x10

    4x7

    5x6

    5x8

    End Finishing Flange, Metal Ring, Cross Connector, closed, etc



    Surface profiles Support profiles Min.slot opening Min.pitch in mm Max.pitch in mm
    10S Q25 0.030 5 17
    11S Q25 0.030 5 17
    12S Q35 0.050 8.5 25
    18S Q35 0.050 8.5 25
    18S 10x3/25x3 0.200 17 25
    22S Q25 0.100 8.5 22
    22S 10x3 0.200 17 25
    28S Q35/D45/25x3 0.200 17 25
    34S Q35/10x3/25x3 0.200 17 25
    42S Q35/10x3/25x3 0.200 17 25
    42S 38x3 0.200 25 25



    Images of wedge wire screen

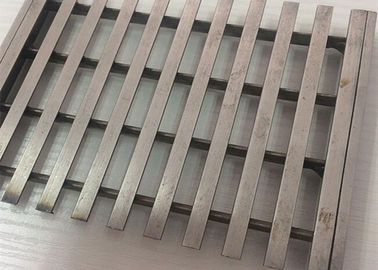

    OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves



    OEM Water Intake Flat Sheet Drum Wedge Wire Screen Panel For Vibrating Sieves



    Product Feature of wedge wire screen panel


    Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, narrow width of the gap, have

    a wire made of cold rolled stainless steel, this wire is support rods. The screen is uniform, the welding is stable, high hole rate,

    long service life, high strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.



    Flat Welded Screens’ Standard constructions



    A combination of different support profiles and pitches within one flat screen is possibleVariable spacing between support wires

    in one screen Curved screens;

    curve direction and filtration direction are to be determined by the customer

    Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and

    differential pressure
