38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners

38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners

    • 38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners
    • 38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners
    • 38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners
    • 38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners
  • 38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Round Self Locking Clips

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 1000 pcs per carton , also could be packed as request
    Delivery Time: within 10days after first payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 150,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Round Self Locking Clips Material: Aluminum
    Washer Shape: Round Washer Size: 28mm,30mm,38mm, Etc
    Pins Diameter: 2.7mm,3mm In Common , Also Could Be Customized Thickness: 0.4-0.8mm



    38mm Diameter Round Self Locking Washer for Perforated Base Insulaton Fasteners



    Round self locking washers specification



    Material Clip shape  Clip diameter Pins diameter Clip thickness Packaging
    Aluminum, Galv steel  Round 22mm 10Ga, 12Ga, 14Ga 0.35mm 1000pcs/carton
    Aluminum, Galv steel Round 28mm 10Ga, 12Ga, 14Ga 0.35mm 1000pcs/carton
    Aluminum, Galv steel Round 30mm 10Ga, 12Ga, 14Ga 0.35mm 1000pcs/carton
    Aluminum, Galv steel Round 35mm 10Ga, 12Ga, 14Ga 0.35mm 1000pcs/carton
    Aluminum, Galv steel Round 38mm 10Ga, 12Ga, 14Ga 0.35mm 1000pcs/carton
    The clips also could be customized



    Application of the round self locking washer


    round self-locking washer, or speed clip, is made primarily in Mild Steel, with Standard Stainless and Aluminum sizes available.

    In several variations of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding

    insulation material in place. The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular

    diameters are 14 gauge, 12 gauge and 10 gauge---while overall, a wide variety of whole sizes are available in both standard and

    metric self-locking hole sizes which can range from 1/8" to 1/2".



    Characteristics of the Round self locking washer



    1. Various size for choose

    2. Quick Mounting

    3. Stallable to all positions and fire-resistant

    4. Ageing resistance,  resisting emperature shock, anti-corrosion, cold and heat;

    5. High bearing capacity, high pressure, tensile performance is good;

    6. After loading will not easily be deformated, moistureproof,  good thermal insulation

    7. insulation nails size,diameter 3mm,length can be made

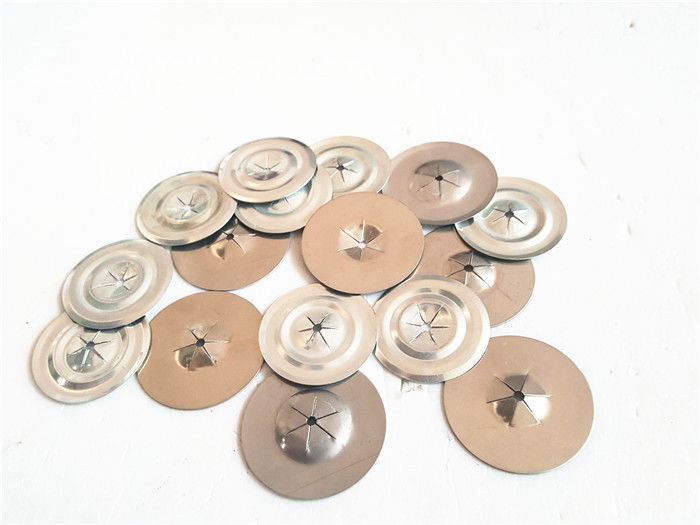

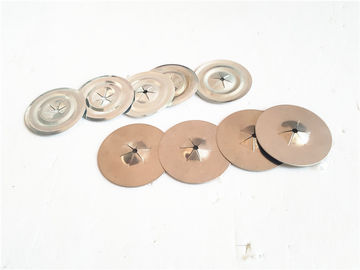

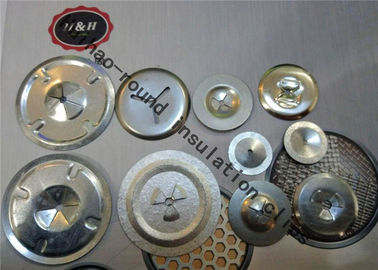

    pictures of the round self locking washer



    38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners38mm Diameter Round Self Locking Washer For Perforated Base Insulaton Fasteners
