64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge

64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge

    • 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge
    • 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge
    • 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge
    • 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge
  • 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Square Self locking Clips

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Self locking Clips , Heat Insulating Washers packing:2500 pcs per carton , also could be packed as request
    Delivery Time: within 10days after first payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 150,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Self Locking Clips , Heat Insulating Washers Material: Galvanized Steel , Aluminum
    Washer Shape: Square Clips Size: 1'', 1 1/2'', 2'' Etc
    Pins Diameter: 2.7mm,3mm In Common , Also Could Be Customized Small Order: Available

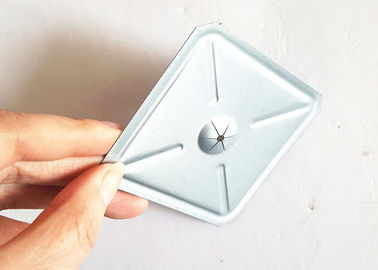

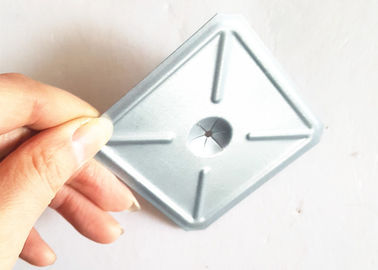

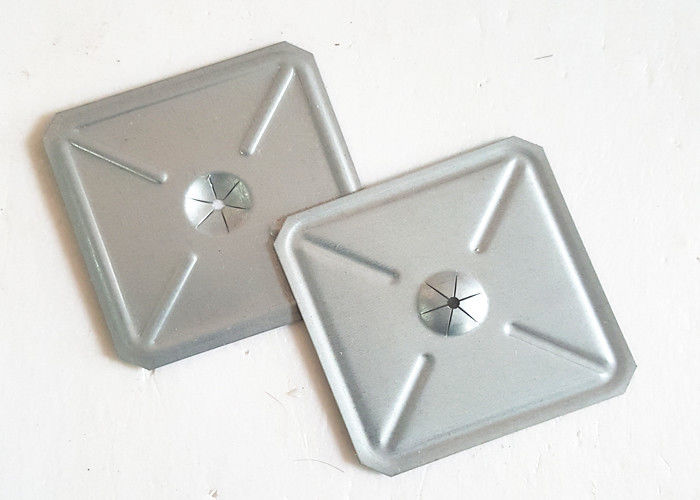

    64MM Dia Square Self locking Clips , Heat Insulating Washers With Beveled Edge



    Specification of mian pictures  square self locking clips



    64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge 64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge



    material diameter center hole thickness
    mild steel 64mm 12ga, 3mm, 10ga 0.5mm
    stainless steel 64mm 12ga, 3mm, 10ga 0.5mm



    other sizes Detail of the Square Self locking Clips , Heat Insulating Washers



    Material:galvanized steel in common, Stainless steel , aluminum is also available



    pictures of self locking clips Size  Thickness  Plating Edges Packaging
    64MM Dia Square Self Locking Clip , Heat Insulating Washers With Beveled Edge 1''x1'' 0.015'' Galvanized Flat 1000pcs/carton
    1 3 / 16''x1 3 / 16'' 0.015'' Galvanized Beveled 1000pcs/carton
    1 1 / 2''x1 1 / 2'' 0.015'' Galvanized Beveled 1000pcs/carton
    2''x2'' 0.015'' Galvanized Beveled 1000pcs/carton



    Characteristics of the Square Self locking Clips , Heat Insulating Washers

    • Quick Mounting
    • Stallable to all positions
    • Fire-resistant
    • the size also could be customized
    • Square self-locking clips are available as a matter of design or application preference,
    • The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking.
    • Plastic cap made of fireproof material, fire rating A
    • Internal locking piece, rustproof and waterproof, high hardness, not easy to deform
    • Smooth surface without burrs
    • Self-locking function, does not fall off
    • Widely used in the Australian market

    usages of Square Self locking Clips , Heat Insulating Washers



    Square self-locking clips are used in conjunction with weld pins, insulation anchors and lacing anchors to fasten

    insulation in place, simply press with self locking washer onto the pin up to the insulation until the desired position

    is reached, then clip off or bend over the remaining portion of pin for a permanent attachment



    Square self-locking clips are available according to different dia pins , such as 2.7mm, 3.0mm , etc
