Product Details:
|
| Name: | Threaded Stud Welder , CD Stud Welding Machine | Dimensions: | 546mmx240mmx350mm |
|---|---|---|---|
| Voltage: | 220v | Weight: | 20kgs |
| Function: | CD Stud Welding | Cooling Mode: | Air Cooling |
| High Light: | cd weld pins,threaded stud welder |
||

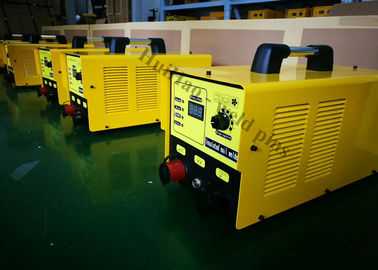

Capacitor Discharge Threaded Stud Welder , CD Stud Welding Machine for Weld Stud
Product Description:
Threaded Stud Welder , CD Stud Welding Machine Technical features :
The utility model has the advantages of novel design, compact structure, reliable use, stepless regulation of charging voltage,large regulating range and convenient adjustment of various parameters.
This is the use of capacitor discharge welding machine, fast to insulation nails firmly welded on the work piece.It has to improve production efficiency Rate, reduce production, reduce the production cost (materials, labor, electricity), welding intensity is high.The characteristics of deformation and welding position can be convenient, easy to operate, was quick tolearn.
| Model | CDM8 | CDM8 |
| Variant | Contact | Lift Gap |
| Nominal Capacitance | 66,000mf | 66,000mf |
| Weld Range Mild Steel | 2-8mm | 2-8mm |
| Weld Range Stainless Steel | 2-8mm | 2-8mm |
| Weld Range Al.Alloy | 2-6mm | 2-6mm |
| Weld Range Zintec | 2-6mm | 2-6mm |
| Weight – controller only | 16kg | 16kg |
TECHNICAL SPECIFICATION - CONTROLLER
| Mains input | 115 and 230V AC, 50-60Hz, 1 Phase |
| Input power | 1.8 KVA |
| Input fuse rating | 16A at 115V, 10A at 230V |
| Output voltage | 35-200V |
| Output power source | Electrolytic Capacitors |
| Weld rate | 10-50 studs per minute |
| Weld range | 2-10mm |
| Enclosure | Class IP31 protection |

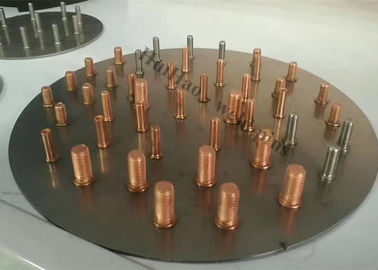

Threaded Stud Welder , CD Stud Welding Machine is widely used in shipbuilding, have higher economic benefit.Mainly used for welding of carbon steel,stainless steel bar, without flux and protection measures, with conform to the requirements of the strong Degree and micro structure.The combination of several kinds of main material are shown in table

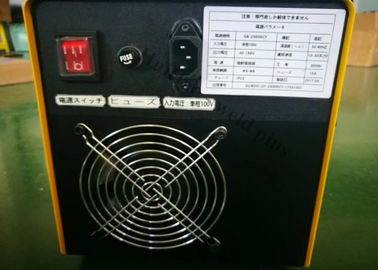

welding preparation
(1) insert the earth wire electrode holder, control line, quick connectors welding machine control panel connection port;
(2) insert the power input line welding power input port, and open the power control switch;
Remark: this equipment is a low frequency, do not and argon arc welding machine and other high frequency
equipment sharing power Mouth, mouth, and make using the equipment with more distance.
(3) check whether the indicator light is open;
(4) the voltage regulation knob to turn check whether can normal working voltage charging and discharging;
(5) the adjustment of the charging voltage
Before plug-in power charging voltage adjustment knob shall be transferred to the smaller values, and then switched on.Slowly clockwise rotation Adjust knob, and watch the charging voltage meter, adjust until the required working voltage, after working voltage is set,After each welding welding machine can automatically recharge to the set value.
Insulation pin diameter charging voltage(v) remakes
M3 120-130 According to actual demand intensity parameter adjustment
M4 135-155 According to actual demand intensity parameter adjustment
