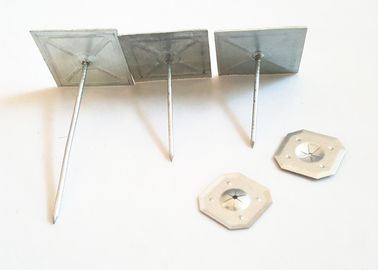

Product Details:
|
| Product Name: | Self Adhesive Insulation Pins | Material: | Mild Steel |
|---|---|---|---|
| Round Base: | 35mm | Pin Length: | 25mm-180mm |
| Round Base Thickness: | 0.4-0.8mm | Application: | Use For Air Conditioner |
| High Light: | insulation pins and washers,insulation wall plugs |
||
Pin plating: galvanized costing is standard. yellow white and blue gal are available
Washers: self-locking washers are available in a variety of sizes, shapes and materials
Usage: Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing
works, and for the duct-lining
|
PIN DIAMETER |
ROUND BASE |
Length |
|
0.106" |
1-1/2" |
Stnd up to 6" |
|
0.135" |
1-1/2" |
to be order |
|
0.080" |
1-3/16" |
Up to 2-1/2 |
|
0.106" |
1-3/16" |
Stnd up to 6" |
self Adhesive Insulation Pins advantages
·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail from alkali
GUIDELINES FOR self Adhesive Insulation Pins
USE: These hangers are designed to mechanically hold insulation material to various surfaces. It is very important for the user to determine the suitability of this product for each application. Discretion must be used in application, and we recommend that the user first perform a test application to satisfy himself of the desirability of using the product for the user’s particular purpose.
self Adhesive Insulation Pins CAUTION:
The user is responsible for determining the suitability of the application. Hangers must be applied to a clean, dry, non-porous surface
that is free of all oil, films, dust, rust, etc. Self-adhering hangers are not recommended for concrete or painted surfaces. It is important
that they not be used where operating temperatures can exceed 150° F at the point of adhesion. Hangers should not be used on ceilings
or roofs of metal buildings or any surface the reverse side of which may be exposed to heat concentration from sunlight, etc., direct or
otherwise. Load per anchor should not exceed 3 lbs.
self Adhesive Insulation Pins APPLICATION:
Best results are obtained when ambient temperature is above 40° F at the time of application. Remove the release paper from the base
plate and apply hanger to a suitable flat surface. A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature
of the adhesive, it is very important that the release paper not be removed until ready to apply the hanger. Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50% relative humidity. It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended.
WIPE SURFACE CLEAN.Anchor should be applied to a clean, dry non-porous surface
PEEL OFF RELEASE BACKING.NOTE: Double faced foam tape has a one-year active shelf life
STICK ANCHOR IN PLACE.Select location before contact with surface.Press firmly
APPLY FIRM PRESSURE.20 pounds of pressure should be applied all around the base of the anchor
ALLOW TO STAND 15-20 MINUTES.This will permit better adhesion to take place
