Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board

Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board

    • Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board
    • Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board
    • Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board
    • Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board
  • Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Rock Wool Insulation pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: paper box + wooden pallets
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Rock Wool Insulation Pins Material: Galvanized Steel
    Plug Dia: 8mm Pin Length: 80mm,90mm,110mm,140mm,etc
    Surface Treatment: Zinc Plated Material Thickness: 0.7mm

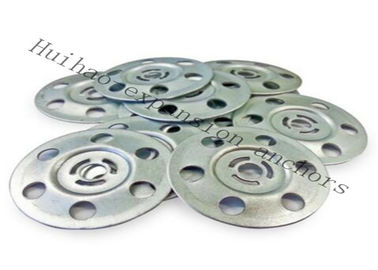

    Techincal: Punch And Riveting Round Base Washer: 30mm Or 35mm



    Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board


    Description of galvanized steel insulation anchor pins

    ___________________________________________________________



    Galvanized Steel Insulation anchor Pins, also named metal expanded plug, rock wool insulation pins , inculation support

    and wall anchor plug. it is made of galvanized steel tube with round washer base. the product techincal is stamped by CNC

    machine with mould, then Iron pipe and base riveted together. insulation anchor pins is for fastening rigid insulation to masonry.

    It is as simple as drilling straight through the insulation into the masonry and hammer the insulation fixing the mineralwool for

    external walls.


    Detail data of the Galvanized Steel Insulation anchor Pins

    ___________________________________________________________


    •Material:Galvanized steel or stainless steel or to be your order
    •Size(mm):common type see the following data sheet, specification size, need customer supply drawing with details.
    •Surface treatment: galvanized, copper plated, polish



    Data of Galvanized Steel Insulation anchor Pins



    Pin Size Plug Diameter Pin Length Round base washer Size Pin Weight
    M8x50 8mm 50mm 30mm / 35mm  10.2g
    M8x60 8mm 60mm 30mm / 35mm 11.2g
    M8x90 8mm 90mm 30mm / 35mm 14.8g
    M8x110 8mm 110mm 30mm / 35mm 17.3g
    M8x140 8mm 140mm 30mm / 35mm 20.8g
    M8x170 8mm 170mm 30mm / 35mm 24.4g
    M8x230 8mm 230mm 30mm / 35mm 34.4g



    Application of the Galvanized Steel Insulation anchor Pins

    __________________________________________________________________________________


    Galvanized Steel Insulation anchor Pins Widely used in the construction and decoration, the anchoring aspect of the wall

    insulation house. It consists of galvanized screws, nylon risers and fixed discs. According to the thickness of the insulation

    layer, it is divided into various specifications.



    According to JG149-2003 external wall insulation standards
    Single insulation nail load capacity >0.8KN
    Thermal conductivity >0.004


    they are suit for concrete, natural stone with dense structure, solid brick, solid sand-lime brick, solid block made from light

    weight concrete, aerated concrete, vertically perforated brick, perforated sand-lime brick etc.

    project installation sample:


    The number of anchors installed on the outer wall insulation system of the extruded board; the average of 1-10 layers is 6 per

    square meter, and the average of 11-20 layers is 7 per square meter, 21-26, 9 per square meter. Any single block with an area

    greater than 0.1 square meter must be anchored, depending on the shape and site conditions; the density of the anchor should

    be increased around the angle of the sun, under the mouth, and around the edge of the hole. The distance is not more than

    300mm, from the edge of the base. Not less than 60mm


    Approval and Testing Report

    ____________________________________________________________________________

    • CE Approval
    • Reaction to Fire test: A1
    • Material Inspection certification
    • Salt Spray Test

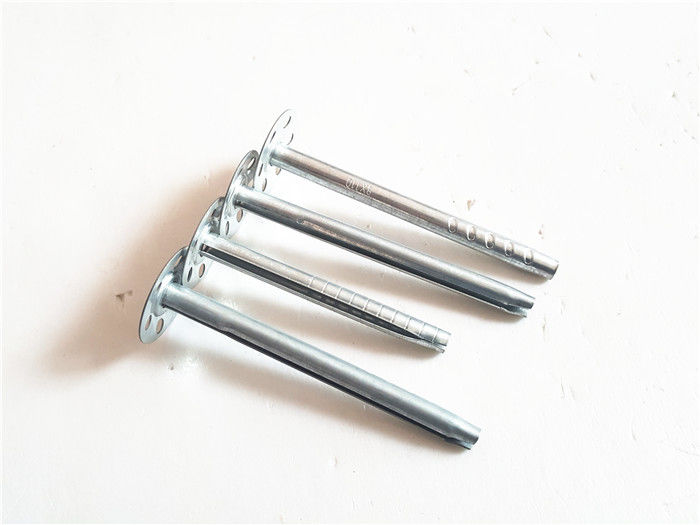

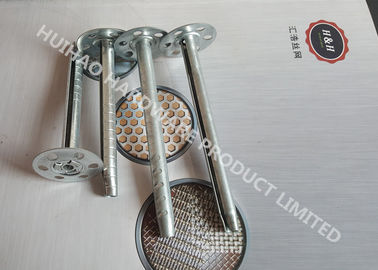

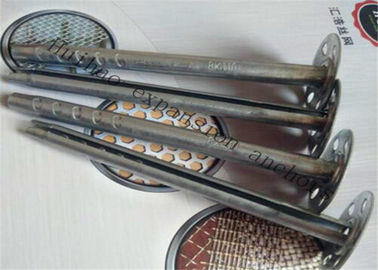

    images of galvanized steel insulation anchor pins

    ____________________________________________________________________



    Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board


    Packaging of the Galvanized Steel Insulation anchor Pins

    __________________________________________________________________________


    250pcs per carton, and then put the cartons on pallets; and also could be packed as request.


    Galvanized Steel Insulation anchor Pins For Mineral Wool Wall Inaulation Board


    Sample;DHL/EMS/UPS/TNT/EXPRESS
    Large Order:we recommand you by SEA ,or by AIR if in an emergency.
