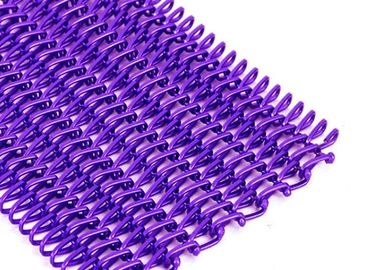

ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening

ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening

    • ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening
    • ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening
  • ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO
    Model Number: Chain Link Type Metal Mesh Drapery

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Bubble plastic film package can protect copper mesh coil curtain from rain or water,Wooden boxes package can protect copper mesh coil curtain from internal vibration and external impact
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 10000 square meter 20 days
    Contact Now
    Detailed Product Description
    Product Name: Chain Link Type Metal Mesh Drapery Material: Stainless Steel , Aluminum, Copper, Brass, Iron
    Wire Diameter: 0.5 Mm - 2 Mm. Aperture Size: 3 Mm - 20 Mm
    Surface Treatment: Pickling, Anodic Oxidation And Baking Varnish Width: Less Than 6000mm

    Baking Varnish China Link Type Metal Mesh Drapery Use Day - Lighting Screening



    China Link Type Metal Mesh Drapery ,Copper and brass mesh coil curtain, which is also called copper and brass metal coil curtain or drapery, is made of high-quality aluminum wire, iron wire, copper wire, or other materials. It's cheap to maintain copper and brass mesh coil curtain because you only need to wipe it by a cloth. The new kind of curtain with excellent fireproof property, ventilation, light transmission and nobility is significant for both interior and exterior decorations such as window treatment, architectural drapery, shower curtain, space divider, ceilings. Generally, copper and brass mesh coil curtain is used in exhibition halls, living rooms, restaurants, hotels and bathroom. Here are copper and brass mesh coil curtains respectively.



    Note: Customized according to your requirements.



    Specifications of China Link Type Metal Mesh Drapery

    • Product name: China Link Type Metal Mesh Drapery

    • Material: brass, copper, aluminum alloy, low carbon steel, etc.

    • Wire diameter: 0.5–2 mm.

    • Aperture diameter: 3–20 mm.

    • Diamond height: 3–20 mm.

    • Diamond width: 5.5–35 mm.

    • Coil outside diameter: 3.75–19.5 mm.

    • Coil inside diameter: 4–24 mm.

    • Pitch: 4–24 mm.

    • Open area: 40% – 85%.

    • Weight: 4.2–6 kg/m2. (depending on material and size chosen)

    • Coil length & mesh panel width: customized.

    Terms

    Diameter (mm)

    Aperture (mm)

    Thickness (mm)

    hhmesh-1

    0.8 4 3.6

    hhmesh-2

    0.8 5 3.6

    hhmesh-3

    0.8 6 3.6

    hhmesh-4

    0.8 8 3.6

    hhmesh-5

    0.8 9 3.6

    hhmesh-6

    1.0 4 3.6

    hhmesh-7

    1.0 5 3.6

    hhmesh-8

    1.0 6 3.6

    hhmesh-9

    1.0 8 3.6

    hhmesh-10

    1.0 9 3.6

    hhmesh-11

    1.0 10 3.6

    hhmesh-12

    1.0 20 3.6

    hhmesh-13

    1.2 4 3.6

    hhmesh-14

    1.2 5 3.6

    hhmesh-15

    1.2 6 3.6

    hhmesh-16

    1.2 8 3.6

    hhmesh-17

    1.2 9 3.6

    hhmesh-18

    1.2 10 3.6

    hhmesh-19

    1.2 20 3.6

    hhmesh-20

    1.2 30 3.6

    Surface treatment: pickling, anodic oxidation and baking varnish.

    • Pickling.
      The theory of pickling is to remove the oxide or inclusions on the surface. The color, going through the pickling process, can keep a long time without rust and fade.
    • Anodic oxidation.
      Anodic oxidation, by organic solvent as medium, uses point discharge to form a protective film on the product surface. Anodic oxidation can enhance anti-corrosion property and durability of the product. By the way, it can be put any color you want.
    • Baking varnish.
      Baking varnish, a general coloring way, sprays lacquer on the surface and then mixes the paint colors. Finally, painting the mixed paint onto the mesh coil curtain. After painting color on the surface, the surface will be baked in high temperature to get a durable color. The colors, through baking varnish, will be bright and beautiful.

    ChainLink Type Metal Mesh Drapery Of Baking Varnish Use Day Lighting Screening



    China Link Type Metal Mesh Drapery Applications:



    According to its different applications, metal coil drapery can be used in many architecture design and building decoration. So metal coil curtain can be used as:



    Interior partition.Door curtain.Security gate.Shower curtain.Sun shades.Store fixtures.Ventilation grilles.Privacy ceiling panels.Fireplace mesh curtain.Interior space curtains.Decorative facade fabric.Architecture outside designs.



    Exterior wall cladding material.Wall decoration.Blast debris protection.Sound insulation.Day-lighting screening.Fall protection.



    Custom Chain Mail Ring Metal Mesh Drapery For Shopping Mall Hotel Decoration



    China Link Type Metal Mesh Drapery Packaging:


    First, metal coil curtain is packaged in rolls with water-proof paper or plastic film, and then put them in cartons, wooden cases or pallets at your requests.



    Custom Chain Mail Ring Metal Mesh Drapery For Shopping Mall Hotel Decoration

    Custom Chain Mail Ring Metal Mesh Drapery For Shopping Mall Hotel Decoration



    China Link Type Metal Mesh Drapery installation



    We have three different installation ways: U track, H track installation and stainless steel curtain rod installation.

    • H track can be applied as rippled strips to appear the effect of fluency. Because of high flexibility, it's easy to be bent into any shape or angle in order to conform to installation position condition which you need to install with copper or brass mesh coil curtain.
    • U track is a straight structure. It's difficult to bend because of exceptional structural design and high-quality control. U track can provide a good visual hang feeling for your copper and brass mesh coil curtain. If you need and desire an aesthetic appearance, U track will be a good choice.
    • Stainless steel curtain rod is is easy for installing with copper and brass mesh coil curtain on it. You can use shorter time to compete installation.

    H track, U track are made from aluminum materials. Stainless steel curtain rod material conforms to AISI 316 materials group. These three installation ways can provide ideal solutions with excellent stability, strength and flexibility for you. You can custom according to your requirements.



    Custom Chain Mail Ring Metal Mesh Drapery For Shopping Mall Hotel Decoration
