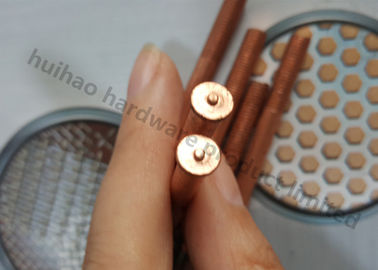

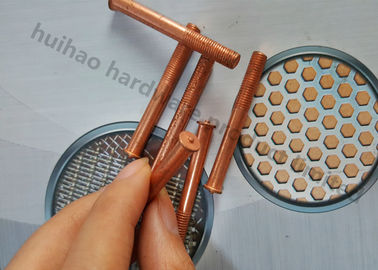

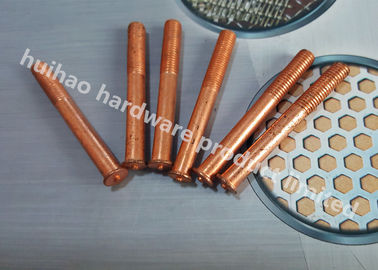

Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction

Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction
Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction
Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction

Large Image :  Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO
Model Number: Stud Welder Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Stud Welder Pins packing details, 500 pcs per bag, 10 bags per carton, and also to be your requirements.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500000pcs per 30 days

Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction

Description
Product Name: Stud Welder Pins Material: Steel, Stainless Steel Copper
Surface Treatment: Copper Plated, Galvanized Weld Pin Length: 23MM
Application: Military Defense Vehicles, Curain Wall Adornment Pins Diameter: M3-m8
High Light:

cd weld pins

,

threaded stud welder



Copper Plated Stud Welder Pins with Flanged Navy Stud 0.875" Road Construction



Stud Welder Pins,SS304 Mild Steel , Stainless Steel For Curain Wall Adornment



Insulation Pin /stud pin / welding pin/ stud welding accessories / weld pins / stud welder pins

Material : Copper Plated , Stainless Steel …



Introductions : Insulation Pin /stud pin / welding pin/ stud welding accessories, with material for copper plated and ss304 and what you needed . It could be used in Curain wall adornment and so on .


Stud Welder Pins SPECIFICATION



pin diameter

flange diameter

Min. Length

4-40

0.143

0.250

6-32

0.169

0.250

8-32

0.195

0.250

10-32

0.221

0.250

10-24

0.221

0.250

1/4-20

0.281

0.375


Stud Welder Pins Materials


Low Carbon Steel



C - 0.23% max.

P - 0.04% max.

Mn - 0.90% max.

S - 0.05% max.



Stainless Steel AISI grade - 302/304/305 std. Other grades available upon request.
Aluminum ALLOY - 1100 & 5000 series Other alloys available upon request.
Brass ALLOY - (lead free) 70-30 std. Other alloys available upon request.


Stud Welder Pins Mechanical Properties


Low Carbon Steel


Tensile - 60,000 psi (min.)
Yield - 50,000 psi (min.)
Elongation - 20% (in 2 inches)
C - 0.23% max. P - 0.04% max.Mn - 0.90% max. S - 0.05% max.
Tensile - 60,000 psi (min.)
Yield - 50,000 psi (min.)
Elongation - 20% (in 2 inches)


Stainless Steel:AISI grade - 302/304/305 std.Other grades available upon request.
Values for various grades available upon request.


Plating:Galvanized and Copper plating are available for Low Carbon "Mild" Steel,Annealing,Low Carbon "Mild" Steel can be annealed if required.


Washers:Self-locking washers are available in a variety of sizes, shapes, and materials.


Application:Ideally suited for welding to surfaces covered with mill scale, rust, or paint



Stud Welder Pins Application:



Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

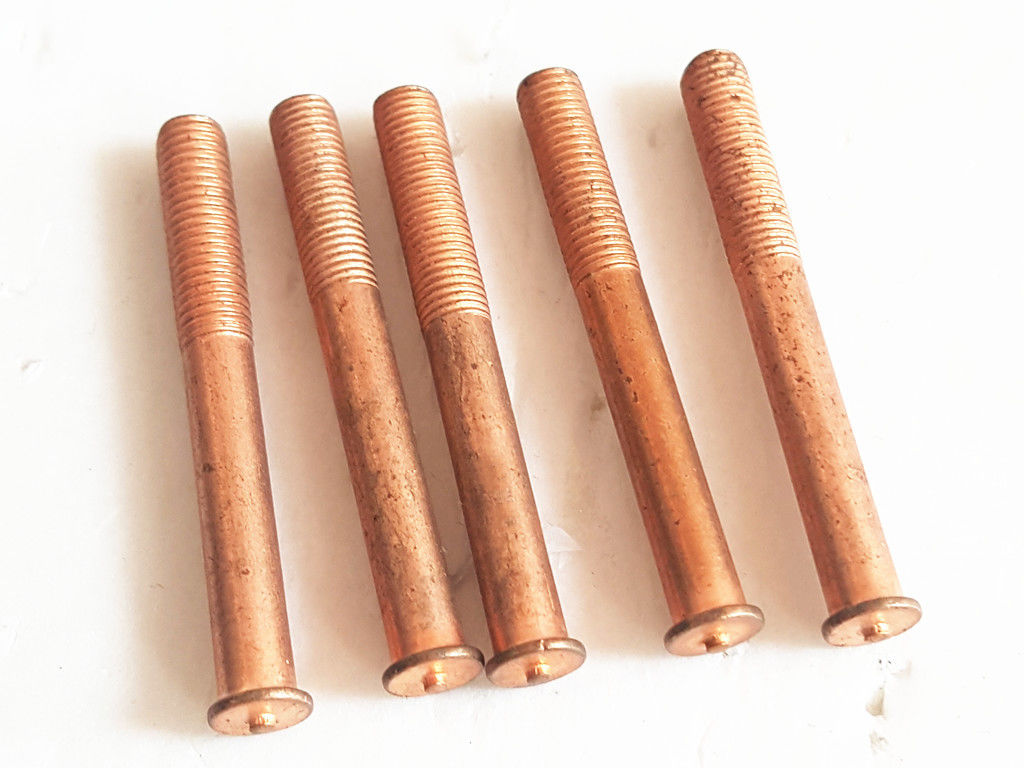

Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction 0

Copper Plated Stud Welder Pins With Flanged Navy Stud 0.875" Road Construction 1



FAQ



1. Reliable quality make you never worry about quality issues.
2. Most competitive price help you get more market shares.
3. Good after-sale service, all questions will be replied within 12 hours.
4. One stop source, all related products requirement can source from us.
5. Convenient transportation and fast delivery. All available shipping ways could be applied, by express, air or sea.
