Detailed Product Description
Name: Johnson Resin Trap Filter Material: SS304,316
Application: Tank Equipment Length: WITHIN 6000MM
OD: Ø – 258, 267, 356, 405, 630, 640, 900, 916, 1230mm ID: 19mm-1981mm
High Light:

johnson wedge wire screens

,

johnson stainless steel screen



Wedge Wire Screen for Tank Equipment, Johnson Resin Trap Filter With Flange



Specification of Jphnson resin trap filter

_______________________________________________________________________________________________



Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

25mm-2000mm

ID Range

19mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

3*5

3*5

Connection

Flange and thread

End Type

Closed plate

Note

Customized According To Special Requirement



surface profiles

support profiles

min.dia/mm

min. slot width/mm

Outside diameter/mm

No.of support profiles

10s

Q25

21

0.10

30

8

11s

Q20/Q25

23

0.030

45

10

12s

22S

30

0.050

57

12

12s

Q25

23

0.030

70

18

12s

Q35

30

0.050

85

18

18s

22S/Q35

30

0.050

97

20

18s

Q25

25

0.030

110

24

18s

D45

300

0.20

137

30

18s

10X3

300

0.20

164

36

22s

22S/35Q

45

0.10

215

48

22s

D45 or 10x3 or 25x3

300

0.20

268

48

28s

Q35

215

0.20

305

40

28s

D45 or 10x3 or 25x3

300

0.20

380

48

34s

Q35

300

0.20

460

60

34s

D45

300

0.20

510

64

34s

10x3 or 25x3

300

0.20

625

80

42s

Q35 or D45

300

0.20

914

180

42s

10x3 or 25x3

300

0.20






details of  Johnson Resin Trap Filter

___________________________________________________________________________________



Wedge Wire Screen for Tank Equipment, Johnson Resin Trap Filter With Flange is a mechanical self-cleaning device that was

developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from

mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities

than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.



wedge wire screen center-pipes internals is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around

support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.



Characteristics

1) continuous slot screens, stronger and more durable

2) more open area, very precise openings

3) virtually non-clogging and reduce media abrasion

4) easier installation and long-term operating and cost benefits



Application

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well

as many other applications involving liquid & solids separation.



pictures of johnson resin trap filter

___________________________________________________________________________________

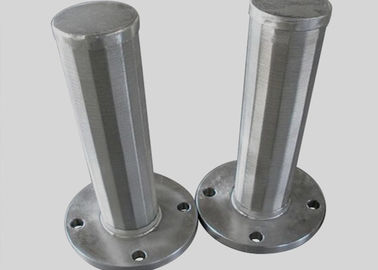

Wedge Wire Screen for Tank Equipment, Johnson Resin Trap Filter With Flange 0
