Product Details:
|
| Material: | Iron,Stainless Steel,etc | Pin Diameter: | M3 |
|---|---|---|---|
| Pin Length: | 15 - 110 Mm | Application: | Car Repair |
| Type: | Weld Nails | Head: | 30mm Cupped Head |
| High Light: | copper plated insulation pins,cd weld pins |
||
Size :Standard.non-standard according to drawing or samples
Material :available Stainless Steel ,carbon Steel
Standard: ISO,GB,DIN,JIS,ANSI,BSW
1. specification of metal cupped head weld pins
Other diameters, lengths and materials are available by special order...minimum quantities may apply.
Call Cutlass for part numbers not shown.
Sizes
| TYPE | SIZES | ||
| A | B | C | |
| CHP1 | 30mm(1-3/16”) | 9.5mm to 300mm | 2.7mm(12ga) ,2.0mm(14ga) |
| CHP2 | 38mm(1-1/2”) | 9.5mm to 300mm | 2.7mm(12ga) ,2.0mm(14ga) |
Application
Fix earth clamp of the welder Place the pin on the magnetic head of the gun Press the pin through the insulation
To the steel metal . Adjust the voltage according to the type and until the point meets the sheet metal
Lay insulation on sheet metal. thickness of sheet metal and press the trigger
2. material of metal cupped head weld pins
|
MATERIAL |
MILD STEEL |
STAINLESS STEEL |
|
|
C - 0.23% max. |
P - 0.04% max. |
AISI grade - 302/304/305/316 std. |
|
|
Mn - 0.90% max. |
S - 0.05% max. |
Other grades available upon request. |
|
|
MECHANICAL PROPERTIES |
Tensile |
60,000 psi (min.) |
Values for various grades available upon request. |
|
Yield |
50,000 psi (min.) |
||
|
Elongation |
20% (in 2 inches) |
||
|
PLATING |
Plating is not standard. Cadmium, Copper, Nickel, and Zinc available upon customer request. |
||

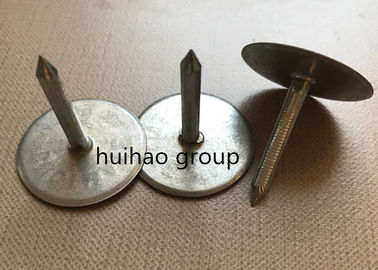

4. images of stainless steel cd stud welding pins, cupped head weld pins
