Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO
Model Number: Rubber Vibrating Screen Sieve Plate
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Packaging Details: pallets
Delivery Time: 8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per 20 days
Contact Now
Detailed Product Description
Material: Rubber Thickness: 20, 25 & 35mm
Standard Size: 305mmx305mm Aperture Type: Square Round Slotted
Small Order: Support
High Light:

stainless steel filter mesh

,

self cleaning screen



Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens



Product Details of Module Deck Media Rubber Vibrating Screen Sieve Plate



Some of the advantages that Module Deck Media Rubber Vibrating Screen Sieve Plate mats have over other screening

media include;



 Fit most manufacturers' screens.

 Highly flexible - reduced pegging & blinding

 Highly flexible - improved stratification

 Reduces noise pollution

 Suitable for a wide variety of applications



Module Deck Media Rubber Vibrating Screen Sieve Plate are ideally suited for high frequency screens with longitudinal

support bars. They are effectively used in primary, secondary and tertiary screening applications as well as rotary

trommel screens



Hook Type

Suitable for

Light Duty

3-10mm thickness

Standard Duty

15-35mm thickness

Standard Recessed

35mm, 70mm Apt & below

Heavy Duty Recessed

35mm, 70mm Apt & above

End Tensioned

20-40mm thickness

Heavy Duty - non std hook

25 & 35mm thickness



Standard square hole of Module Deck Media Rubber Vibrating Screen Sieve Plate



Standard specification of rubber vibrating screen sieve plate

Size of aperture W

Overall height BH

Height of the screenin area SF

Effective open screening area %

7

30

11

27.7

8

30

10

29

9

30

18

24

10

30

12

29

11

30

16

27

12

30

17

33

13

30

17

28

14

30

19

25

15

30

19

26

16

30

17

27

18

30

20

34

18

40

24

24

19

30

19

37

20

30

20

30

22

30

20

36

24

30

20

32

25

30

22

26

27

30

21

35

30

30

19

27

32

40

30

27

34

40

30

25

35

40

30

22

36

40

40

24

38

30

20

30

40

40

31

29

42

40

31

33

45

35

30

37

50

50

30

30

55

40

40

34

60

40

40

35

63

40

40

30

65

40

40

25

65

50

50

27

67

38

38

35

70

40

40

29

80

40

40

34



Standard aperture sizes of the rubber Screen Panel - oblong, staggered mesh

Size
of aperture W1

Size
of aperture W2

Overall
height BH

Height
of the screening
area SF

Width
of the screen

Length
of the screen

Effective open
screening area %

2.2

11.5

30

10

300

1000

21.7

2.5

16

30

10

300

1000

24.6

3

16

30

10

300

1000

18.7

4

20

30

10

300

1000

23

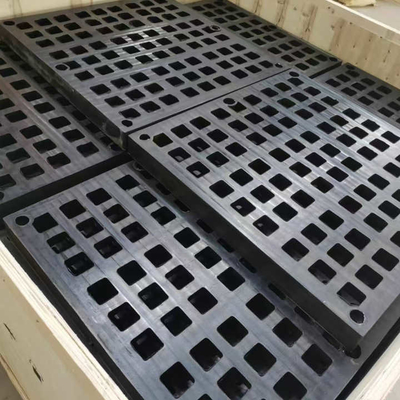

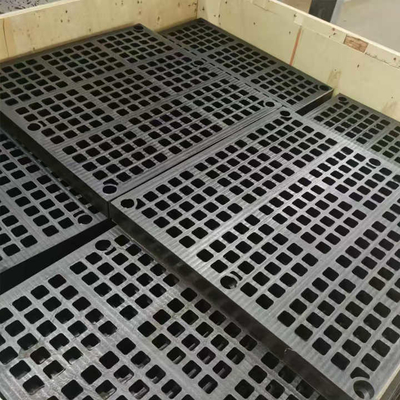

images of Module Deck Media Rubber Vibrating Screen Sieve Plate


Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens 0
