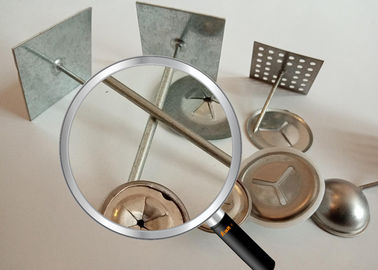

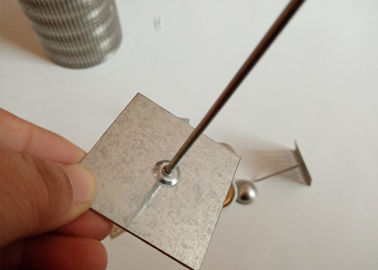

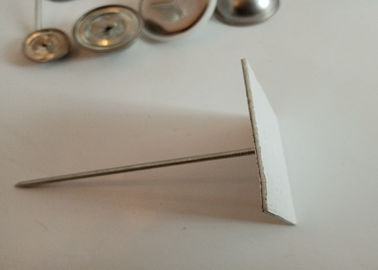

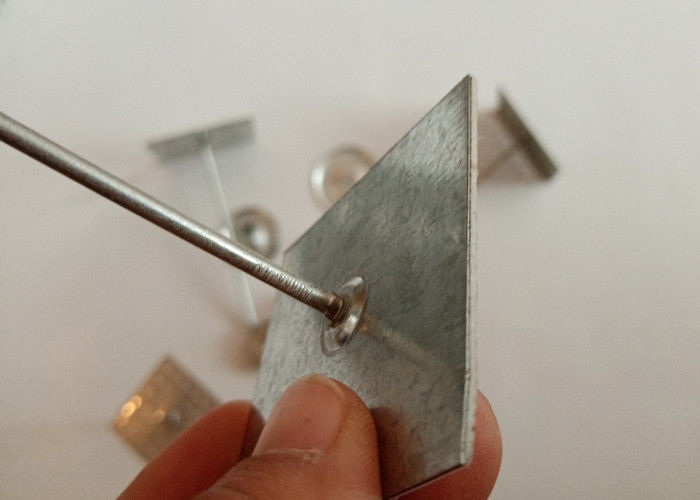

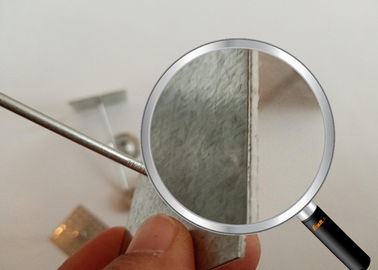

Mild Steel Square Base Self Adhesive Insulation Pins For Hvac System

Mild steel square base self adhesive insulation fixing pins for HAVC system

Base size :25mmx25mm ,35mmx35mm ,40mmx40mm ,45mmx45mm ,50mmx50mm all are atandard

Pin diameter:1.7mm for 25x25 base ,2.67mm and 3mm for 35mm to 50mm base are standard ,other size available by special orde only

Pin length :20mm to 150mm are standard ,other length available by order

Pin material :1.7mm pin is aluminum ,2.67mm and 3mm are low carbon steel ,stainless steel ,aluminum

Pin plating :galvanized costing is standard ,other are available as your requirement

Washer: square and round washer are standare ,other are available

Dome cap :stainless steel and galvanized ,PE plastic cap

Usage:Exclusively used for fixing adiabatic material in ductsof air conditioner ,for glass wool and rock wool in soundproofing works ,and

for the duct-lining

Recommended assembly method :

1.Work surfaces should be clean and dry ,free of dust ,grease ,oil and any other loose matter

2.Remove the protective release paper taking care not to touch the adhesive

3. place the hanger in the required position and the base against the surface to be insulated

4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours

Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards, suitable for brick

and conrete walls.

Advantages of the Insulation anchor Pins

·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail
