Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen

Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen

  • Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
  • Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
  • Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
  • Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
  • Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen
Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO9001-2008
Model Number: Decorative Wire Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meters
Packaging Details: plastic paper + wooden case
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, paypal, alibaba
Supply Ability: 1000 square meters
Contact Now
Detailed Product Description
Material: Stainless Steel Width: 4m
Length: 6m Application: Staircases Isolation Screen
Small Order: Available Sample: Available
Custom: Support And Fast Frame: Desin To Your Request
High Light:

stainless steel wire cloth

,

monel wire mesh



Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen



Stainless steel decorative mesh is made of steel wires warp and steel rod,a special stainless steel mesh .

  • pattern design support according to the application
  • frame design support according to the installation
  • surface treatments support , include PVDF, PVD, Spraying.
  • supply install accessories, include screw, wall anchor, track, bolt and others
  • Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
  • Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

1.Specification of Architectural Cable Woven Decorative Wire Mesh



Material

Stainless steel

Opening Area

43.8%

Warp Diameter

2.5mm

Mesh Thickness

7mm

Warp Pitch

6mm

Surface

clean &free oil

Weft Diameter

2mm

Max High

4000mm

Weft Pitch

8mm

Max Wide

6000mm

Weight

9.7kgs/m2

Application

Interior/Exterior



Material

Stainless steel

Opening Area

28%

Warp Diameter

3mm

Mesh Thickness

9mm

Warp Pitch

5mm

Surface

clean &free oil

Weft Diameter

3mm

Max Length

30000mm

Weft Pitch

10mm

Max Wide

6000mm

Weight

14.2kgs/m2

Application

Interior/Exterior

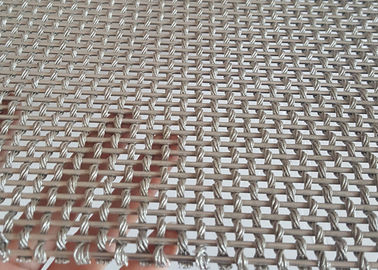

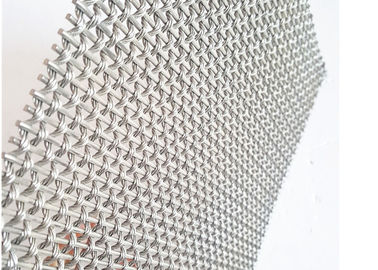

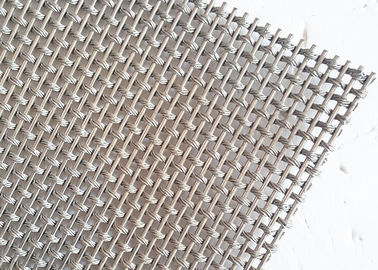

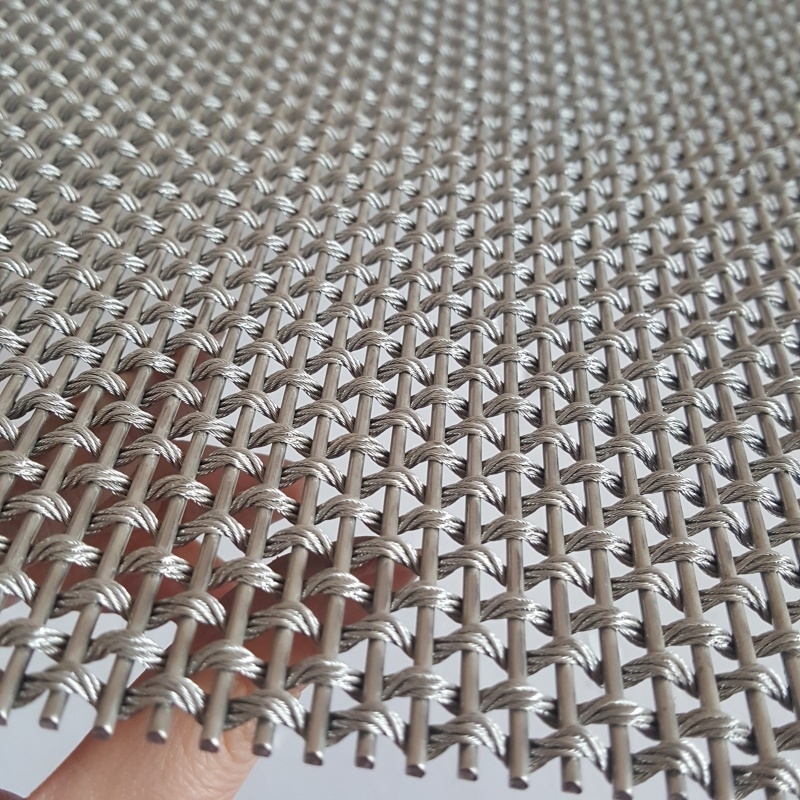

2. images of Architectural Cable Woven Decorative Wire Mesh



Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen 0 Architectural Cable Woven Decorative Wire Mesh For Staircases Isolation Screen 1



 3. features of Architectural Cable Woven Decorative Wire Mesh



· Superior Break-Through Strength

· Fireproof - Does Not Absorb Oil or Other Flammable Liquids

· Easy to Install - Can Be Spliced at Job Site

· Economical - Light Weight Reduces and Simplifies Structural Requirements and Installation



4. application



Widely used in building facades, partition, ceiling, for shading, balcony and corridor, rolling shutter, stair channel, and airport

station, Guesthouse and Hotel, museum, opera, concert hall, office building, exhibition hall, shopping malls, etc, which are for

interior and exterior decoration of high-end places
