Home ProductsSelf Adhesive Insulation Pins

12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer

12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer

  • 12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer
  • 12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer
  • 12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer
  • 12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer
12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer
Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO9001-2015
Model Number: self stick pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000pcs
Packaging Details: 500 pcs self stick pins per carton
Delivery Time: 7 work days
Payment Terms: L/C, D/P, T/T, Western Union,paypal
Supply Ability: 300000pcs per month
Contact Now
Detailed Product Description
Material: MS, SS, ALU Base Size: 50x50mm
Pin Diameter: 2.2mm,2.7mm,3mm Pin Length: 15-280mm
Total Thickness: 1mm Small Order: Available
High Light:

insulation hangers

,

insulation wall plugs



Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer


Details of self stick pins

1. installation accessores: dome caps washer(22mm, 28mm, 40mm), self locking washer 30mm, 40mm
2. small order available, customization acceptable, free samples for common size, cad drawing support
3. installation guide of self stick pins
4. usages temperature:7-50 degree is best for common adhesive. if the ambient temperature is too high or too low, please tell us before order.

Specification of self stick pins


Common specifications

1¼'' 1½'' 2'' 2½'' 3'' 4'' 4½'', others can be customized

pin diameter 3mm    10ga 12ga, 14ga



Material

pin

stainless steel, Aluminum, Stainless steel

base

high strength Galvanzied steel, stainless steel

base size   50mmx50mm

surface treatment

polishing, Galvanzied coating




Product features

bases are tight with pins

Pins are soft, easy bend over

double faced adhesive has good stickiness

length tolerance ±0.1mm

production workmanship

Automated production

Packing

Packing can be customized according to customer requirements, current packing information as follows:
1. Packing in bubble bags or plastic bags first, then in cartons

2. Carton size: 40 (L) * 40 (W) * 50 (D)
3. Package weight: 50g/carton

Application

fasten the insulation or insulation shet, such as ductwork insulation, marine insulation,
During construction, The bottom plate is glued to the surface of the air tube, and then the rock cotton plate is fixed after the glue is cured. The top is stuck with a self locking washer to the rock cotton plane, press according to the thickness of the rock cotton plate, and then bend the aluminum nail hook.

remark

technical parameters are available upon request

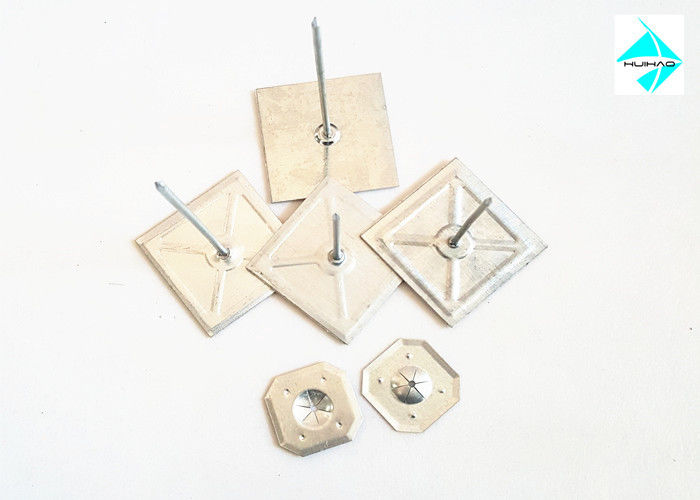

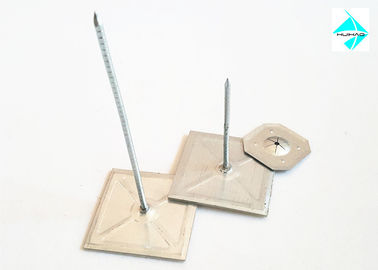

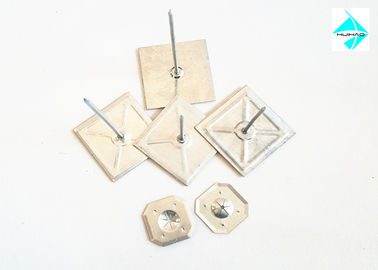

images of self stick pins

 12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer 0
12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer 1
12GA Shipbuildings Galvanized Steel Self Stick Pins Fixing With Dome Cap Washer 2



Huihao company advantages



1. huihao company is belong ISO9001-2008 system, and we will supply official material certification, factory test report and

accept SGS,BV, CE third party test.



2.We produce different standards of self-adhesive insulation nails according to different markets. For example, countries

with tropical climates use insulation nails that are different from countries with cold climates.First of all, the year of glue is

different and the temperature is different.



3. For raw materials, we have American, Japanese, German and European standards.Solved the problem that customers

need product market differentiation.



4.We have a stable sales team that solves the problem of language barriers and order management.



5. 24hour hotline, contact with me by mobile/ whats app 0086-13363891298 or by email admin@huihaomesh.com
